Full-series Closed-Loop Stepper Drives, multi-phase adaptation, multi-encoder compatibility, wide voltage coverage

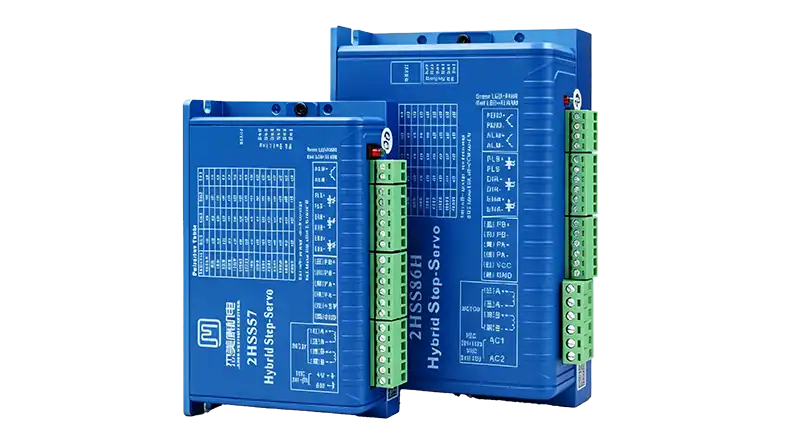

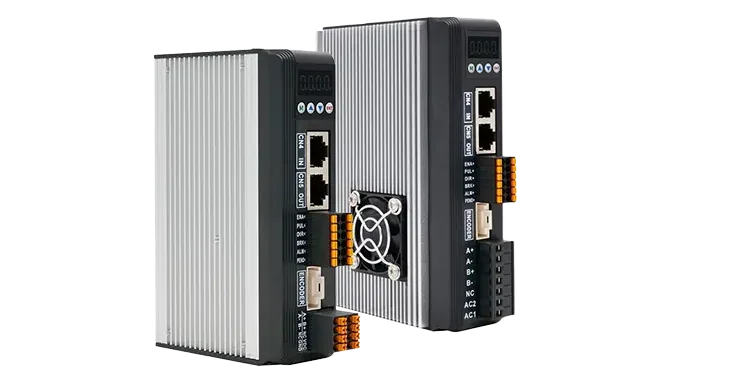

Closed-Loop Stepper Drive are divided into three categories: two-phase (2HSS series), three-phase (3HCS series), and five-phase (5HCS series), including standard, economic, and 17BC absolute encoder versions. The two-phase/three-phase models are compatible with corresponding frame closed-loop stepper motors, with voltage covering DC24-100V/AC18-90V and current range 0-8A. The five-phase models are compatible with five-phase closed-loop stepper motors, with voltage DC24-100V/AC24-75V and current 0-6A. The 17BC absolute encoder models are compatible with corresponding absolute encoder motors, with voltage AC150-240V and current 2-8A. The whole series supports 5-24V signal voltage (5V for 2HSS42), with a maximum pulse frequency of 200KHz for standard versions (500KHz optional). Some models are equipped with fans for heat dissipation, meeting closed-loop stepper motion control needs of different phases, encoder types and voltage levels.
