EtherCAT Fieldbus Coupler for Modular IO

The BM10-RM-EC is an EtherCAT Fieldbus Coupler that links an EtherCAT master network to a modular I/O rack. With two RJ45 ports at a 100 Mb/s transmission rate, it passes cyclic process data to and from attached expansion modules, giving machine builders a standardized way to distribute I/O across a machine without dedicating a controller slot to every signal group.

EtherCAT Gateway for Distributed I/O

EtherCAT is a widely adopted real-time fieldbus in industrial automation because it delivers deterministic cycle times with minimal hardware overhead. By placing this coupler at the head of a modular I/O rack, the engineer can collect sensor and actuator signals at the point of use while the master controller remains the single programming environment.

Isolation and Backplane

Electrical isolation protects the local I/O from ground loops and network transients, raising signal integrity in mixed industrial environments. The high-speed backplane bus feeds data efficiently to connected modules, so expansion modules attached downstream respond within the same communication cycle.

Mounting and Service

The plastic housing keeps it compact and lightweight, with easily accessible expansion interfaces. A guide-rail slot design fits DIN-rail mounting in electrical cabinets, simplifying installation and operation.

Key Specifications

• Protocol: EtherCAT
• Ports: 2 x RJ45
• Transmission rate: 100 Mb/s
• Bus: high-speed backplane
• Isolation: electrical isolation

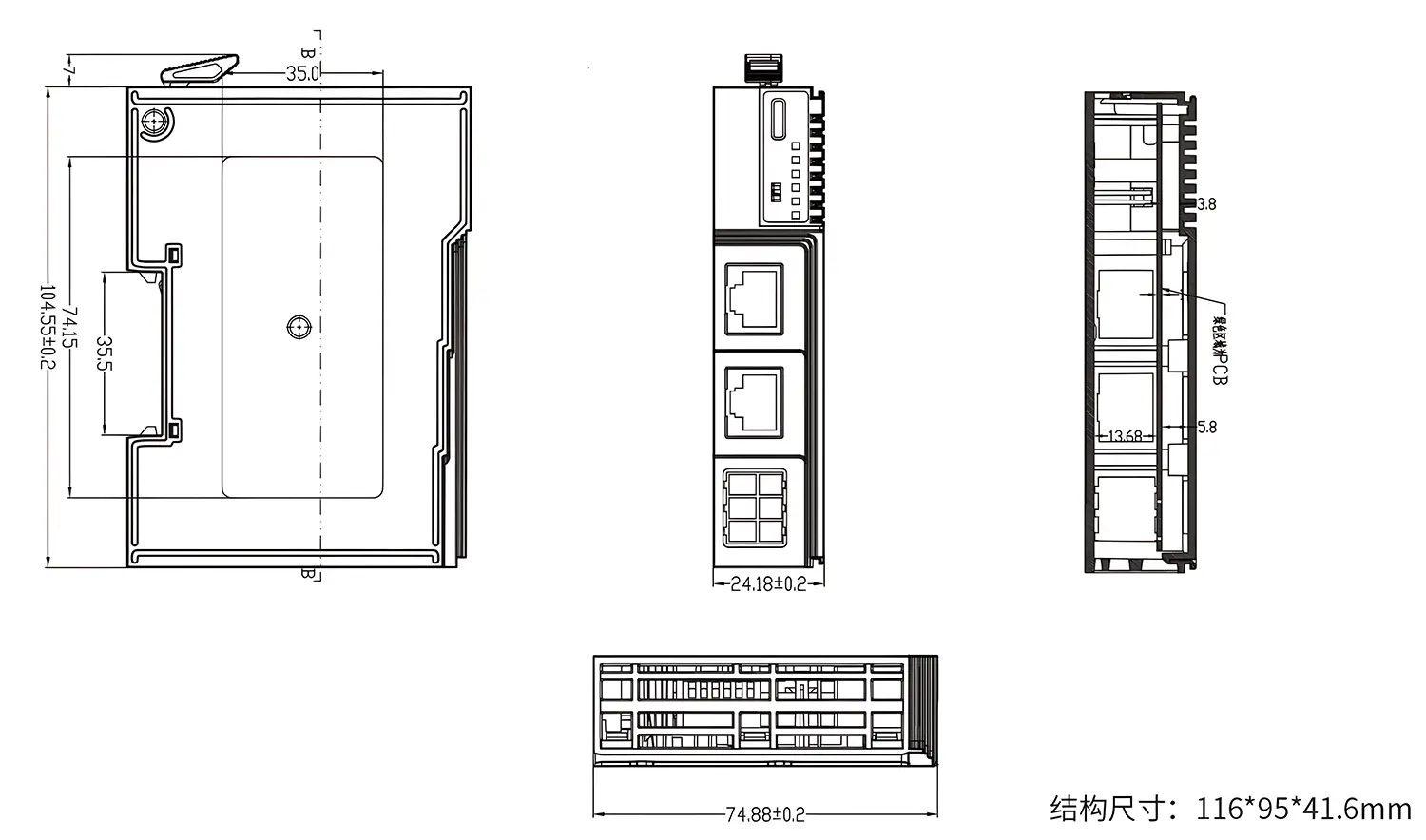

• Housing: compact plastic, guide-rail mount

Application Scenarios

The coupler functions in factory automation, robotics, packaging, CNC machine tools, semiconductor equipment, inspection and material handling. On a packaging line it concentrates photoelectric and valve signals from one station into the EtherCAT master; in semiconductor tools it connects process and safety signals near the equipment rather than running long cables back to a central panel.

Integration Advice

Plan the EtherCAT topology so the coupler’s downstream modules stay within the bus segment, and use shielded twisted-pair cable for the RJ45 links. Verify the master’s cycle time budget can accommodate the number of attached I/O nodes. Lyenwsin offers configuration support to help you size the rack correctly.
