iESVL60-30-20-36-17BC 200W Integrated Servo Motor iESVL (60 mm Frame)

The iESVL60-30-20-36-17BC is a 200W Integrated Servo Motor iESVL series unit using 6.5 A at 3000 r/min with an absolute encoder. As an iESVL-series unit, it integrates Ethernet, USB debug, and I/O interfaces alongside the drive and motor, providing a networked closed loop axis in a compact package.

Efficient Networked Control

Digital three-loop control keeps all servo loops closed, while the absolute encoder reports position immediately at startup, avoiding a homing step. The Ethernet and I/O interfaces let a machine controller manage the axis through the integrated unit, and the USB debug port simplifies setup and maintenance. On an Ethernet-based line, the controller can retrieve axis status, alarm history, and temperature from each unit, which turns commissioning and preventive maintenance into software tasks rather than on-machine checks; the USB port provides a second route for parameter backup and firmware updates.

Stable Light-Duty Operation

A low-heat, low-vibration design keeps operation stable across light-duty cycles. This makes the unit a good fit for modules that run continuously but with modest average torque, where thermal buildup must stay low.

Installation and Thermal Notes

With the drive and network electronics on the body, wiring reduces to supply, network, and I/O connections at the unit, cutting install time and panel footprint. As with other integrated designs, drive losses are released through the shared 60 mm housing, so a modest amount of airflow is prudent when the axis runs near its continuous rating for extended periods.

Applications

The iESVL series suits factory automation, packaging machinery, robotics, and CNC machine tools, particularly where Ethernet and I/O integration let multiple networked axes be commanded from one controller without cumbersome external drives.

Selection Considerations

Confirm the 6.5 A supply requirement and check network addressing for multi-axis deployment. Lyenwsin can supply the network cables and help configure the integrated interfaces.

Key Specifications

• Type: integrated servo motor with network interfaces
• Rated power: 200 W
• Rated current: 6.5 A
• Rated speed: 3000 r/min

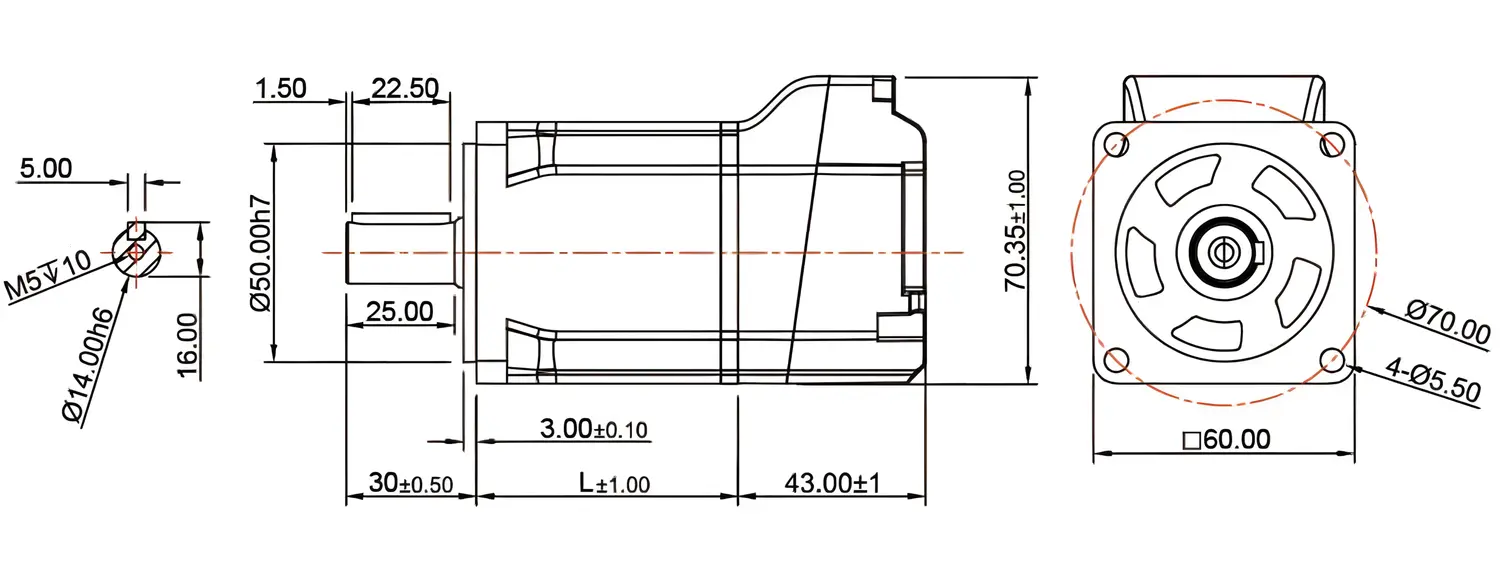

• Frame size: 60 mm
• Length: 60 mm
• Encoder: absolute
