5A 5-Phase Closed-Loop Stepper Drive for Compact CNC

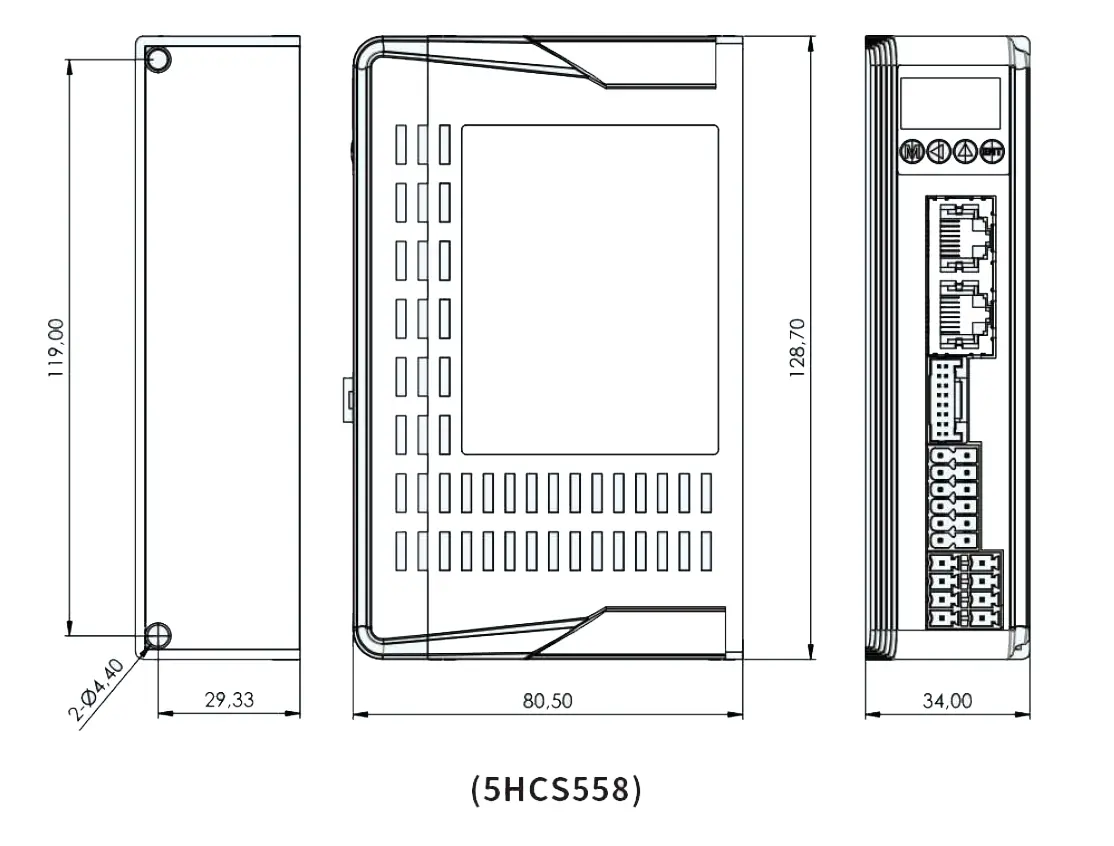

The 5HCS558 is a compact 5-phase closed-loop stepper drive rated for 24-60 VDC supplies with a maximum output current of 5 A. It targets machines where the control cabinet is small and the supply bus is shared with low-voltage logic. Because it is a closed-loop drive, it offers the position security of a servo system at a cost point closer to a stepper installation.

Command Mode Flexibility

Both Pulse/Dir and CW/CCW pulse modes are accepted. Pulse/Dir is the common interface for most motion controllers; CW/CCW is preferred on retrofit machines where the existing controller already outputs directional step trains. Supporting both avoids interface redesign.

Thermal and Acoustic Behavior

The drive is characterized by high efficiency, low heat generation, and low noise. Efficient switching keeps the heatsink small, which matters in densely packed OEM enclosures. The quiet operation also benefits laboratory-adjacent or operator-occupied areas.

Sizing Considerations

The 5 A maximum output and 24-60 VDC supply suit small and medium stepper motors. When sizing, keep the actual motor phase current below the drive’s maximum and verify the motor’s back-EMF against the supply voltage; the closed loop will compensate for load variations within these limits.

Typical Applications

Factory automation, packaging machinery, compact CNC equipment, robotics, automated handling mechanisms, textile machinery, printing machinery, and food processing.

Key Specifications

• Type: 5-phase closed-loop stepper drive
• Supply voltage: 24-60 VDC
• Max output current: 5 A
• Command modes: Pulse/Dir, CW/CCW
• Control: full closed-loop
• Operating characteristics: high efficiency, low heat generation, low noise
