JAWD7502 750W Dual-Axis Servo Drive, 16.9 A, 220 V

750W Dual-Axis Servo Drive for Space-Efficient Cells

The JAWD7502 is a 750W Dual-Axis Servo Drive that integrates two servo channels in a single unit rated at 750 W with a 16.9 A maximum output current. It accepts three-phase AC 180-240 V main power and single-phase AC 180-240 V control power, condensing two axes into one unit to free up panel area.

Coordinated Twin-Axis Control

By containing both channels internally, the drive handles gantry control without external cabling and provides automatic alarm interlocking between axes. This is well suited to gantry-style machines, parallel handling stages, and dual-axis positioning tables where the two axes must move in coordination.

Loop Performance and Tuning

The dual channels run on a 625 kHz current loop with PWM selectable at 8/10.667/16 kHz. A single stiffness parameter, one-key auto-tuning, adaptive end-vibration suppression, an adaptive notch filter, and one-key resonance search let both axes be brought to comparable response quickly.

Feedback and Interfaces

17/23-bit absolute feedback preserves position across power cycles. Two −10 V to +10 V analog command inputs supply reference, and 6 digital inputs plus 4 digital outputs handle interlocking. MicroUSB and RS485 ports cover setup and communication.

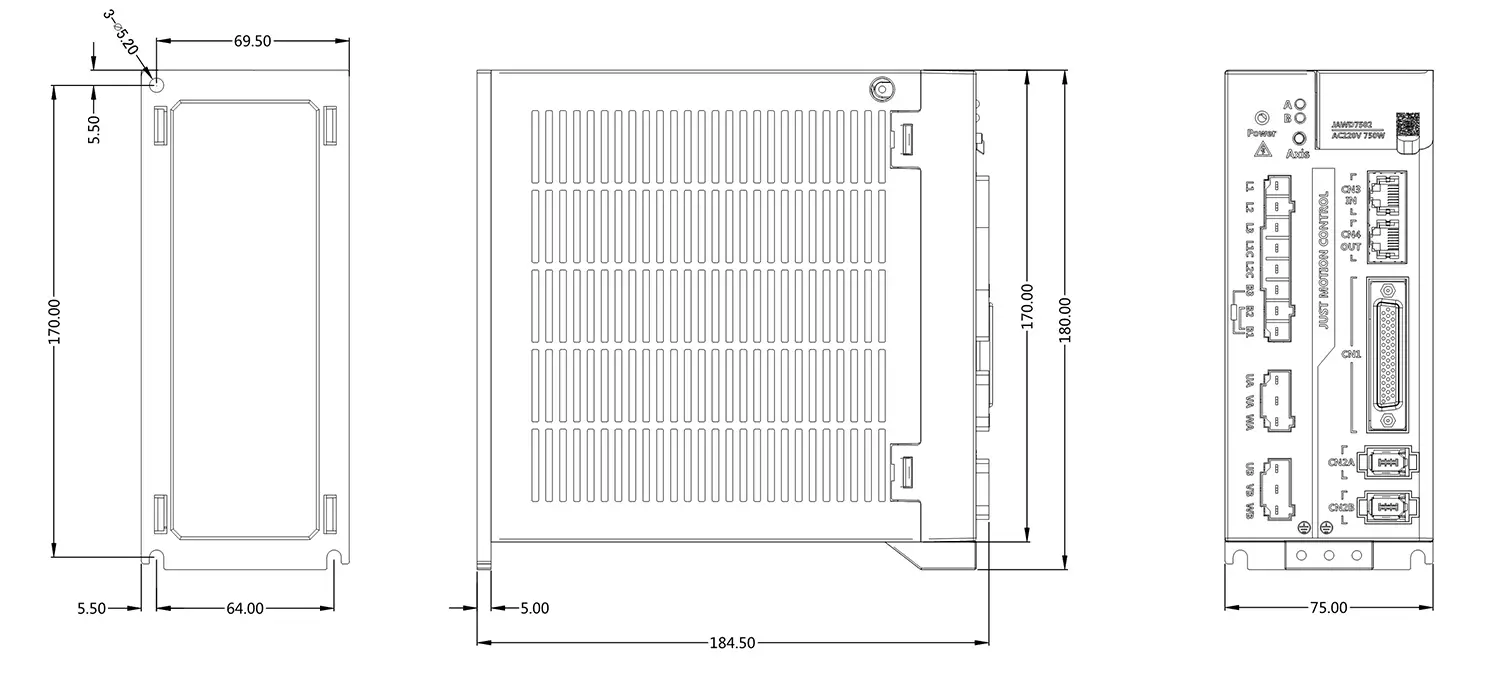

Specifications

• Rated power: 750 W
• Max output current: 16.9 A
• Main power: Three-phase AC 180-240 V, 50/60 Hz
• Control power: Single-phase AC 180-240 V, 50/60 Hz
• Axis design: integrated dual-axis
• Analog inputs: 2 × −10 V to +10 V
• I/O: 6 digital in, 4 digital out
• Feedback: 17/23-bit absolute encoder
• Interfaces: MicroUSB, RS485
• Braking: built-in resistor, external supported
• Protection: overvoltage, undervoltage, overspeed, overload

Braking and Protection

A built-in braking resistor covers typical regeneration, with an external resistor option for heavier deceleration. Overvoltage, undervoltage, overspeed, and overload guards protect both channels.

Application Fit

It suits CNC machine tools, Industrial Automation, semiconductor equipment, robotics, battery manufacturing, material handling, and packaging that benefit from driving two 220 V axes from one compact unit. This configuration is especially useful on retrofits where cabinet space was originally allocated for two separate drives.
