130JASM538325K-M23BH

3800W 380V High-Voltage Servo Motor at 2500 RPM

Product Categories

130JASM538325K-M23BH

• Rated voltage 380 VAC, rated power 3800 W
• Frame 130 mm, rated torque 14.5 N·m
• Rated speed 2500 r/min
• 23-bit magnetic encoder
• With brake
• High rotational speed, high performance, low noise

High-Speed Output on a 130 mm Frame

The 130JASM538325K-M23BH is a fast runner within the 380 V family: 3800 W at 2500 r/min from a 130 mm flange, delivering 14.5 N·m of rated torque. The 23-bit magnetic encoder supports precise closed-loop control even as rotor frequency rises, and the integrated brake locks the shaft when power is removed.

Encoder Resolution at Speed

High-speed operation is where encoder resolution proves its worth. The 23-bit feedback lets the drive maintain an accurate position and speed signal during fast motion, so the servo can track commanded profiles closely instead of lagging into error. This is a closed-loop servo by design: measured angle is continuously compared with command, and position, speed and torque loops correct any deviation.

The family’s short-time 300% overload margin gives headroom for transient spikes during acceleration, while the 2500 r/min rating favors machines that emphasize throughput.

Brake and Thermal Layout

The holding brake secures the load at standstill, useful on vertical or gravity-influenced axes. Because rated power is high relative to the 130 mm flange, the machine should provide airflow so the winding heat is dissipated and the motor runs within its continuous thermal rating.

Application Scope

  • CNC machine tool rapid-feed servo axes
  • Robotics and factory automation high-cycle motion
  • Packaging and food processing machinery
  • Textile and printing high-speed drives
  • Material handling, battery manufacturing and AGV/AMR

Specifications

  • Rated voltage: 380 VAC
  • Rated power: 3800 W
  • Frame size: 130 mm
  • Rated torque: 14.5 N·m
  • Rated speed: 2500 r/min
  • Encoder: 23-bit magnetic
  • Holding brake: included
  • Characteristics: high rotational speed, high performance, low noise

Where a compact frame must deliver high power at speed with precise feedback, the 130JASM538325K-M23BH is engineered to keep up with demanding cycle rates.

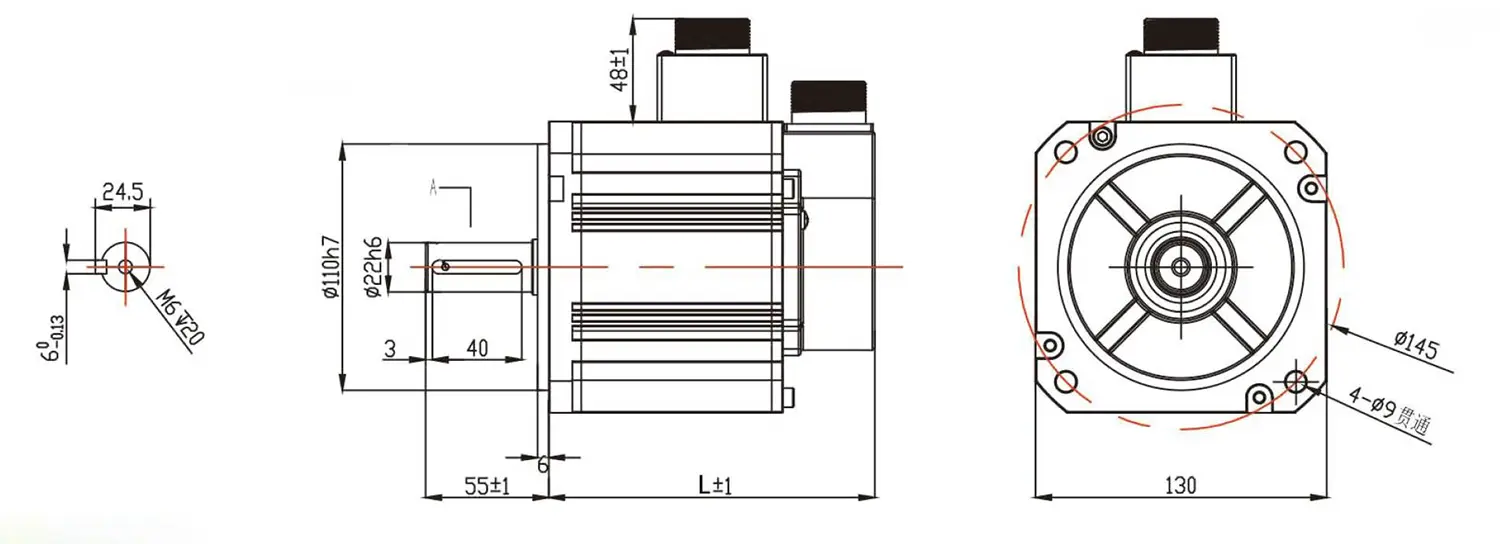

Model130JASM538325K-M23BH
Frame Size(mm)130
Length L(mm)219.5
Brake Length L(mm)253.5
Supply Voltage(V)380V
Rated power(W)3800
Rated Current(A)9.5

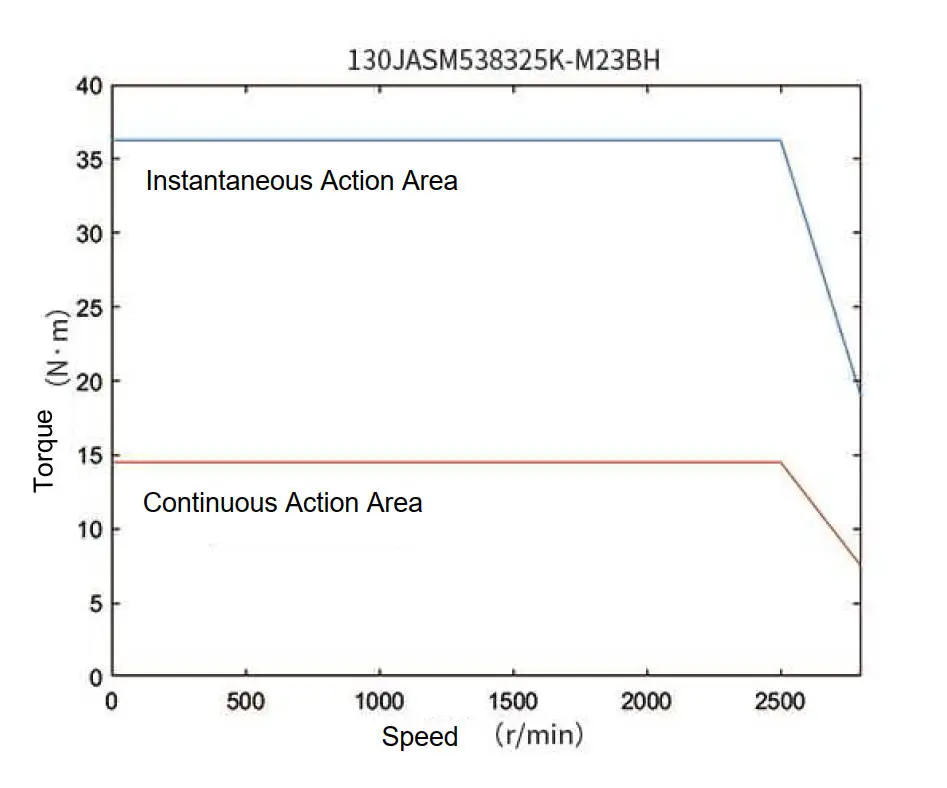

Rated torque(N·m)14.5
Peak torque(N·m)36.25
Rotor inertia(g·cm²)19.7
Rated Speed(r/min)2500
Peak speed(r/min)2800
Weight(kg)10.7
Encoder Resolution23bit
