1000W 380V Servo Motor 80JASM510330K-M23BHZ-P with 3.18 N·m Torque at 3000 r/min

A High-Speed 380 V Servo on an 80 mm Frame

The 80JASM510330K-M23BHZ-P is a 1000W 380V Servo Motor that reaches a rated speed of 3000 r/min from a compact 80 mm flange, with 3.18 N·m of rated torque. A 23-bit magnetic encoder gives the companion drive precise rotor-angle data, and the integral brake holds the shaft when the motor is off.

Feedback at High Rotor Speed

At 3000 r/min the encoder’s 23-bit resolution keeps the velocity and position loop accurate, so the servo tracks fast commands cleanly rather than accumulating lag. This is a closed loop motor: the controller corrects measured deviation in real time across position, speed and torque control modes, which is what makes high-cycle automation dependable.

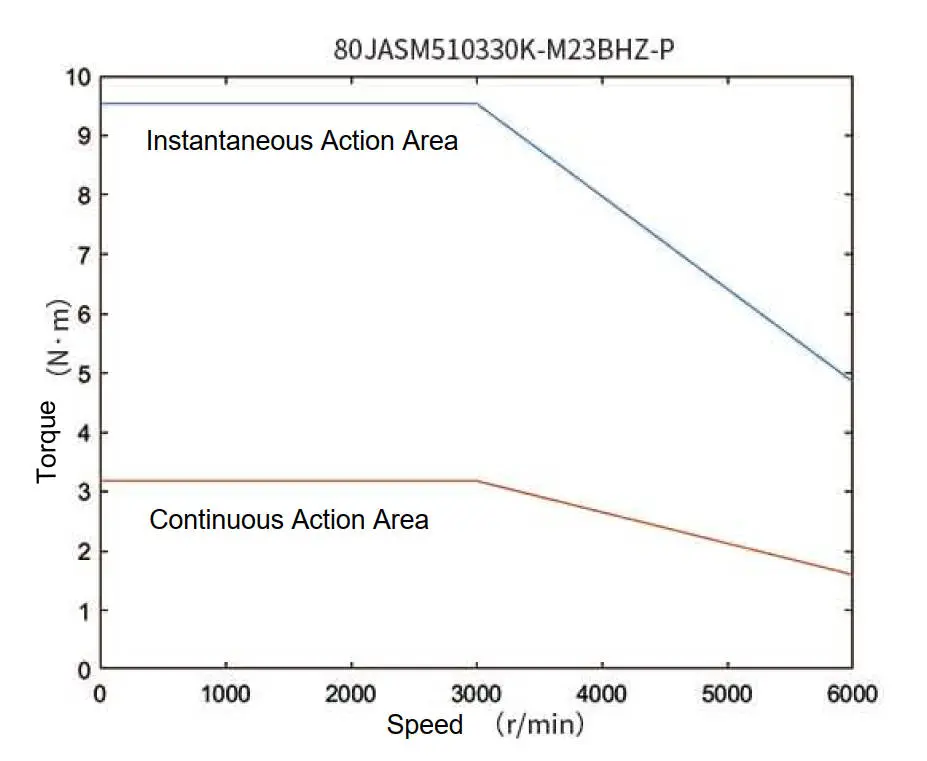

The 3.18 N·m rating is continuous torque; with the 300% overload margin the motor can borrow torque for short accelerations and reversals, subject to thermal duty.

Brake and Compact Mounting

The holding brake locks the shaft at standstill, valuable on vertical or stop-and-go axes. The small 80 mm flange keeps the servo tight inside a machine, while still supporting 1000 W, making it an economical way to get high-speed servo motion in a limited envelope. On compact machines this frees panel space that can be used for the drive and control electronics.

Specifications

• Rated voltage: 380 VAC
• Rated power: 1000 W
• Frame size: 80 mm
• Rated torque: 3.18 N·m
• Rated speed: 3000 r/min
• Encoder: 23-bit magnetic
• Holding brake: included
• Characteristics: high rotational speed, high performance, low noise

Where It Is Applied

The motor suits CNC rapid axes, packaging and food processing high-cycle drives, robotics and factory automation motion, textile and printing machinery, material handling and battery manufacturing, and AGV/AMR traction.

Selection Considerations

For high-rpm duty that still demands precise position control, check the load inertia against the drive’s tuning capability and confirm airflow around the 80 mm body. Lyenwsin supplies the 1000W 380V servo motor with matched drives and engineering support for compact machine designs.
