• Rated voltage 380 VAC, rated power 750 W
• Frame 80 mm, rated torque 2.39 N.m
• Rated speed 3000 r/min
• 23-bit magnetic encoder
• With brake
• High rotational speed, high performance, low noise
The 80JASM507330K-M23BHZ-P is a 750W 380V Servo Motor spinning up to 3000 r/min from an 80 mm frame, with 2.39 N·m of rated torque. Its 23-bit magnetic encoder feeds the driver continuous position data, and an integral brake holds the shaft when power is removed. For plants that standardize on 380 V distribution, the motor avoids the transformer and bus work that lower-voltage systems sometimes require.
Because the servo closes its loop on measured rotor angle, the driver corrects real error in position, speed and torque instead of assuming the command was followed. At 3000 r/min that feedback keeps the axis tracking fast profiles with low error, which is why the unit suits stop-and-go and rapid-feed duties.

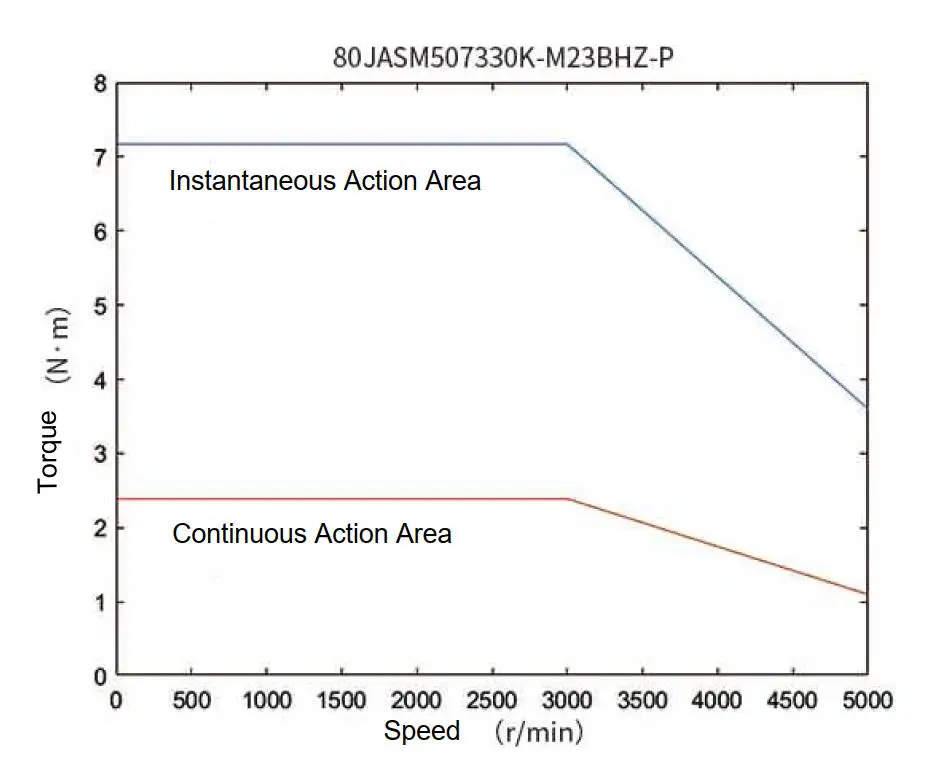

With 2.39 N·m continuous, the motor handles lighter loads with authority, and the 380 V line’s short-time 300% overload margin provides peak torque for acceleration peaks.
The built-in brake holds vertical loads at standstill. The small 80 mm flange fits tight machine envelopes, making this a practical high-speed servo where panel and axis space are scarce.
This servo is used in CNC rapid-feed axes, packaging and food processing machinery, robotics and factory automation, textile and printing high-cycle drives, material handling, battery manufacturing, and AGV/AMR drives.
When a machine needs responsive high-speed servo motion in a compact mount, verify the 2.39 N·m continuous torque against the duty and confirm the drive’s output matches the 750 W rating. Lyenwsin offers the 750W 380V servo motor with compatible drives, cables and commissioning support.
| Model | 80JASM507330K-M23BHZ-P |
| Frame Size（mm） | 80 |
| Length L（mm） | 106 |
| Brake Length L（mm） | 140 |
| Supply Voltage(V) | 380V |
| Rated power(W) | 750 |
| Rated Current（A） | 2.5 |
| Rated torque(N·m) | 2.39 |
| Peak torque(N·m) | 7.17 |
| Rotor inertia（g·cm²） | 1.72 |
| Rated Speed(r/min) | 3000 |
| Peak speed(r/min) | 5000 |
| Weight（kg） | 2.2 |
| Encoder Resolution | 23bit |
