iESV60-30-40-48-17BC 400W Integrated Servo Motor iESV (60 mm Frame)

The iESV60-30-40-48-17BC is a 400W Integrated Servo Motor iESV series unit drawing 11 A at 3000 r/min with an absolute encoder. It is a standard iESV-series unit that houses the drive and motor together and provides communication, debug, and I/O interfaces, supporting multiple frame sizes and a wide voltage range across the series.

Control and Vibration

Digital three-loop control regulates all servo loops continuously, and the absolute encoder removes the homing step normally required at startup. The unit is engineered for low vibration to keep motion smooth and reduce resonance transferred into the machine. The three loops are updated continuously, so the drive can hold position against a steady load and still respond quickly when the command changes; this combination is what lets a compact integrated unit behave like a conventional servo pair in most production settings.

Installation Notes

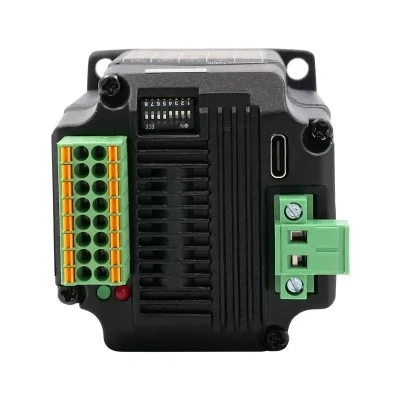

Only supply and control lines need to reach the body, with communication, debug, and I/O handled at the unit, which shortens wiring runs and frees panel space. Drive heat is shed through the shared 60 mm housing, so modest airflow is advisable when average load remains near the continuous rating for extended cycles.

Applications

The iESV series fits factory automation, packaging machinery, robotics, and CNC machine tools. Its compact integrated design and straightforward wiring make it a dependable choice for modular production cells that value ease of installation and repeatable closed loop performance. The integrated layout is especially useful in retrofits where panel space is already crowded: by moving the drive onto the motor, the machine gains room for other components, and the motor and drive arrive as one matched unit that is simple to replace.

Selection Considerations

Confirm the 11 A supply requirement and the cooling plan for the 60 mm body. Lyenwsin can provide compatible cables and help you verify the drive configuration for your controller.

Key Specifications

• Type: integrated servo motor
• Rated power: 400 W
• Rated current: 11 A
• Rated speed: 3000 r/min

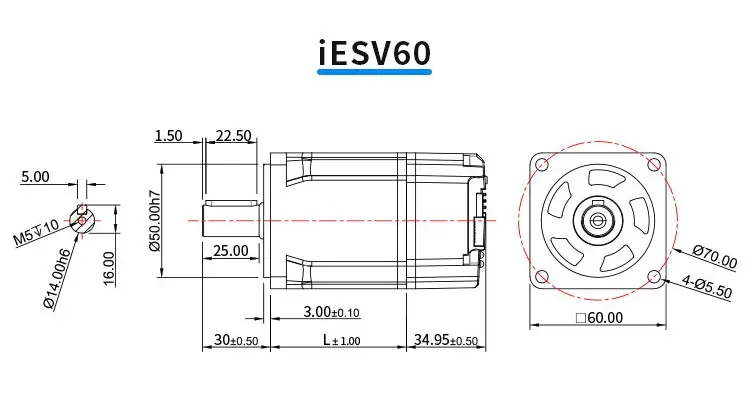

• Frame size: 60 mm
• Length: 72 mm
• Encoder: absolute
