iESVH60-30-20-36-17BC 200W Integrated Servo Motor iESVH (60 mm Frame)

The iESVH60-30-20-36-17BC is a 200W Integrated Servo Motor iESVH series unit drawing 6.5 A at 3000 r/min with an absolute encoder. Part of the iESVH family, it combines the drive and motor and terminates the connections through aviation-style connectors on the body, reducing the cabling of a conventional servo installation.

Efficient and Stable Operation

The 200 W rating keeps heat generation modest, and the closed loop design aims for low heat and low vibration to hold the body cool and the axis steady during lighter duty. Full digital three-loop control with an absolute encoder gives dependable positioning without a startup homing pass. The aviation connectors are worth highlighting at the design stage: they carry power and control in one plug, so a machine builder can pre-terminate cable sets off the line and snap them into place during final assembly. This speeds up production of repeat machines and reduces the chance of mis-wiring between the drive and the motor.

Connection and Mounting

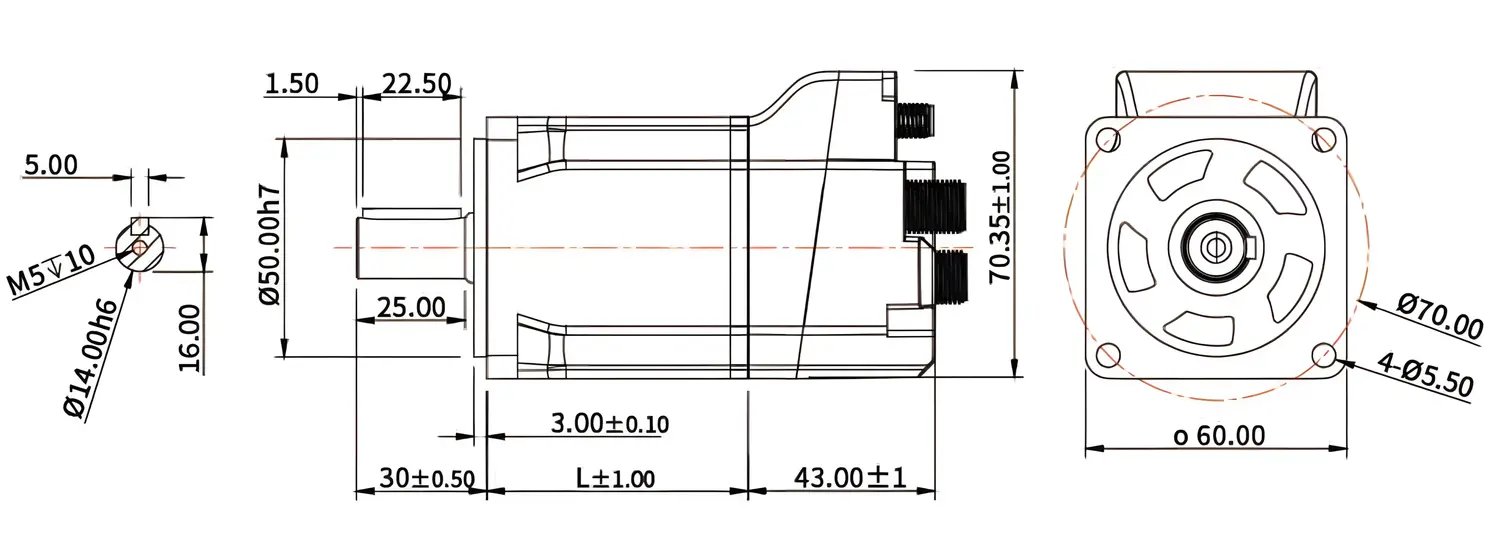

The aviation plug gives a secure, repeatable electrical connection well suited to equipment that sees vibration and frequent handling. With drive losses dissipated in the shared housing, planning a little airflow around the 60 mm body is advisable when the motor is asked to hold a steady moderate load for long intervals. The mounting flange follows the standard 60 mm pattern, so the integrated unit can often replace an existing motor of the same frame size with only a cable change, making it an option for retrofits as well as new designs.

Applications

The compact integrated package fits factory automation, packaging, robotics, and CNC machine tools, and is equally at home on textile, printing, food processing, material handling, battery, and AGV/AMR platforms that want dependable closed loop motion in a small footprint.

Selection Considerations

Check that the 6.5 A rating is within your supply headroom and that the 60 mm body has reasonable cooling. Lyenwsin can supply the aviation connectors and pre-assembled cables to keep installation repeatable.

Key Specifications

• Type: integrated servo motor (drive + motor)
• Rated power: 200 W
• Rated current: 6.5 A
• Rated speed: 3000 r/min
• Frame size: 60 mm
• Length: 60 mm
• Encoder: absolute
