iESVH80-30-75-48-17BC 750W Integrated Servo Motor iESVH (80 mm Frame)

The iESVH80-30-75-48-17BC is a 750W Integrated Servo Motor iESVH series unit rated at 750 W, drawing 21 A at a rated speed of 3000 r/min with an absolute encoder. It uses aviation-style connectors to consolidate the power and control connections on the body, and combining the drive and motor shortens the installation path compared with a split drive-and-motor servo system.

Overview

Because the drive electronics ride on the motor, the machine needs no separate servo amplifier and no long encoder cable. This reduces wiring time and removes a common source of noise and connection faults in production equipment.

closed loop Regulation and Stability

Full closed loop digital three-loop control regulates current, velocity, and position continuously, and the absolute encoder reports position without a homing pass. The design emphasizes low vibration so that the integrated unit does not excite machine resonances during fast moves.

Connector and Thermal Considerations

Aviation-type connectors on the body give a secure, vibration-resistant electrical interface that is practical in production equipment. Because drive electronics share the body with the motor, waste heat from the drive is dissipated through the same 80 mm housing, so mounting on a heat-sinking surface or providing airflow is recommended when average torque stays near the rating for long periods.

Applications

The iESVH series fits CNC machine tools, packaging, robotics, and factory automation, and is also found in textile, printing, food processing, material handling, battery manufacturing, and AGV/AMR applications. The aviation connectors and compact integrated layout make it a strong choice for machines assembled in volume.

Selection Considerations

Verify that your supply can deliver 21 A and that the 80 mm body has adequate airflow or a heat-sinking mount for the duty cycle. Lyenwsin can supply the mating connectors and cables for a complete, plug-ready installation.

Key Specifications

• Type: integrated servo motor (drive + motor)
• Rated power: 750 W
• Rated current: 21 A
• Rated speed: 3000 r/min

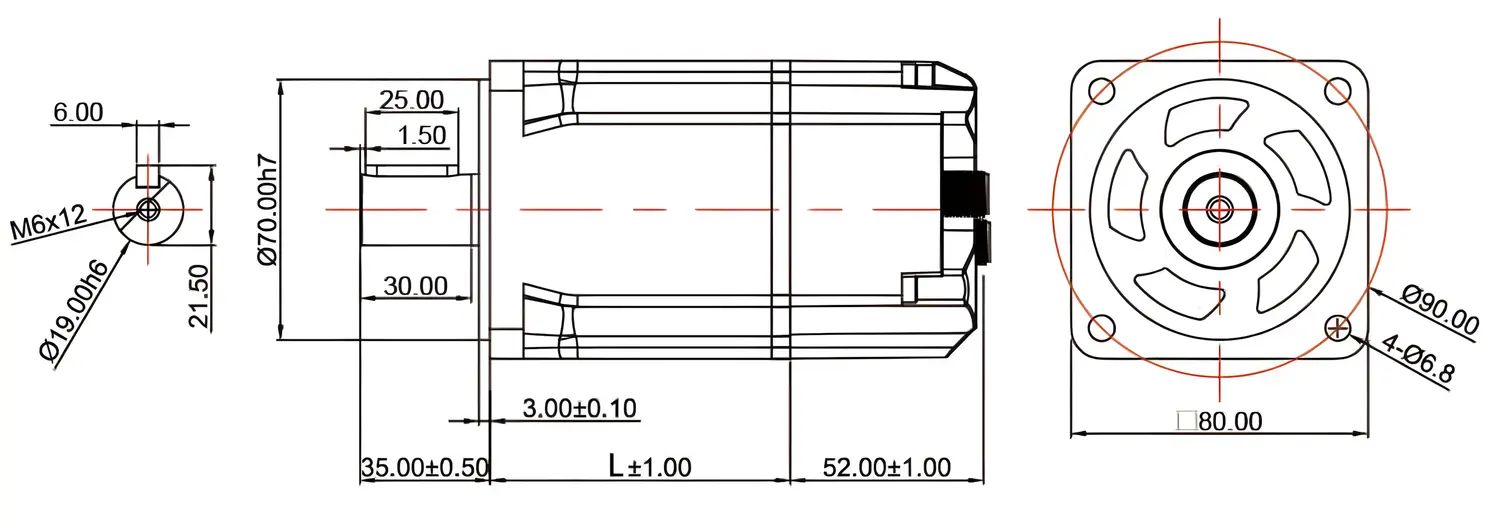

• Frame size: 80 mm
• Length: 81 mm
• Encoder: absolute
