EtherCAT 8A Stepper Drive

What Is the 2DM880-EC EtherCAT 8A Stepper Drive?

The 2DM880-EC is an EtherCAT 8A Stepper Drive built for distributed step axes on bus-controlled machines. Supplied by Lyenwsin to machine builders and automation integrators, it accepts a 24-70 VDC or 48-110 VDC supply and outputs up to 8.0 A, giving it the power stage needed for larger NEMA-frame step motors without requiring a separate motion controller for every axis.

Why Engineers Choose an 8 A Fieldbus Stage

An 8 A output is the sweet spot for axes that sit between small NEMA 23 mechanisms and heavy NEMA 34 positioning. At this current class the drive keeps headroom for acceleration peaks while staying on a low-voltage DC rail, which simplifies cabinet design and reduces the cost of the power distribution board.

Torque behavior across the speed range

Advanced motor control algorithms keep low-speed motion smooth and retain usable torque at higher step rates, where conventional step drives lose output. Because microstepping is customizable, the integrator can trade positioning resolution against motion smoothness for each axis independently.

Wiring and network setup

RJ45 connectors keep the EtherCAT daisy-chain tidy inside a cabinet, and the built-in keypad and display are used to set slave ID, baud rate, and direction on site. The protection set covers phase loss, overcurrent, overvoltage, and disconnection, so a faulty node can be isolated without taking the whole ring down.

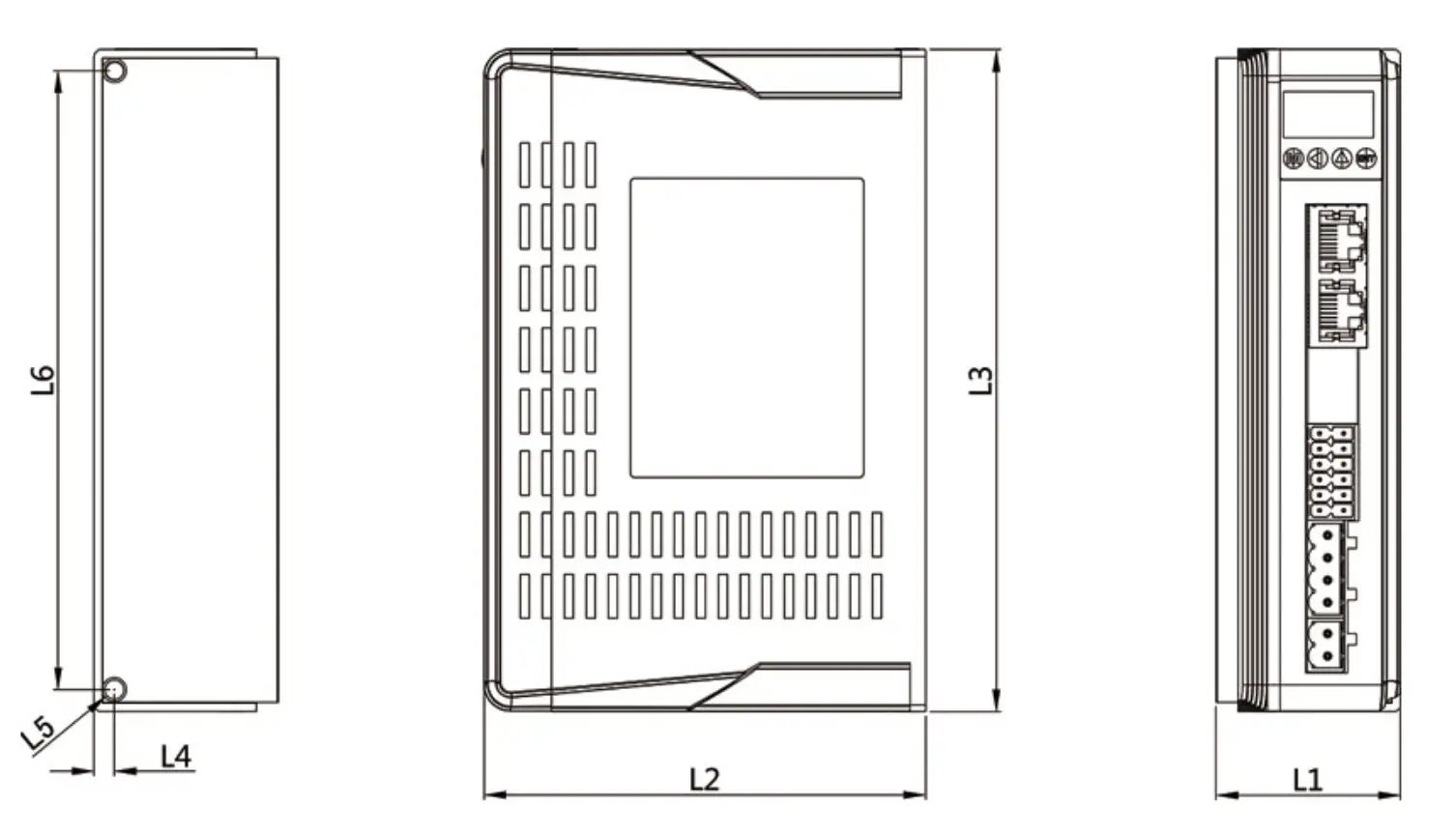

Key Specifications

• Supply voltage: 24-70 VDC / 48-110 VDC
• Output current: up to 8.0 A
• Fieldbus: EtherCAT
• Digital inputs: 5 (home, limits, probe)
• Digital outputs: 2 (brake, alarm, in-position)
• Microstepping: customizable
• Protection: phase loss, overcurrent, overvoltage, disconnection

Realistic Application Scenarios

This drive fits machines where several axes share one EtherCAT ring and the power stage must handle larger step motors:

• Compact CNC equipment: table, spindle-auxiliary, and tool-changer axes networked to one controller.
• Packaging machinery: synchronized wrapper, filler, and labeler stations with registration held across the line.
• Automated handling: robotic peripheral axes and conveyors that need limit and probe wiring.
• Textile, printing, and food processing: distributed step axes on a low-voltage DC cabinet bus.

Selection Considerations

Match the voltage rail to the motor

Higher bus voltage improves high-speed torque, but the motor insulation and the drive rating set the ceiling. Use 24-70 VDC for typical NEMA 23-34 machines and 48-110 VDC only when the motor and cabinet are rated for it.

Size the current to the axis

8.0 A covers larger NEMA step motors, but oversizing a small motor on a high-current drive wastes power. Match the output current to the motor’s rated current rather than the drive maximum. Lyenwsin’s technical support team can help you confirm the right pairing before you order.
