MCAC640-23B Low-Voltage Servo Drive 80A, 24-60 VDC

Low-Voltage Servo Drive 80A for Demanding Axes

The MCAC640-23B is a Low-Voltage Servo Drive 80A unit working on 24-60 VDC with a maximum output current of 80 A. Its ARM+FPGA dual-chip platform runs an optimized current loop for fast response and short settling time. This makes it a strong choice for high-torque low-voltage axes in robotics and industrial automation.

Response and Vibration Behavior

625 kHz current sampling with three selectable PWM frequencies delivers smooth operation and low stop vibration. The hardware keeps the axis stable across a range of motor inductances rather than forcing one switching profile, which helps when motors from different batches are used on the same machine.

Feedback and Commissioning

Absolute encoder feedback removes homing cycles. Single-parameter stiffness setting, one-click auto-tuning, automatic vibration and resonance suppression, and one-click resonance detection streamline setup, and all parameters are configured over a single USB cable.

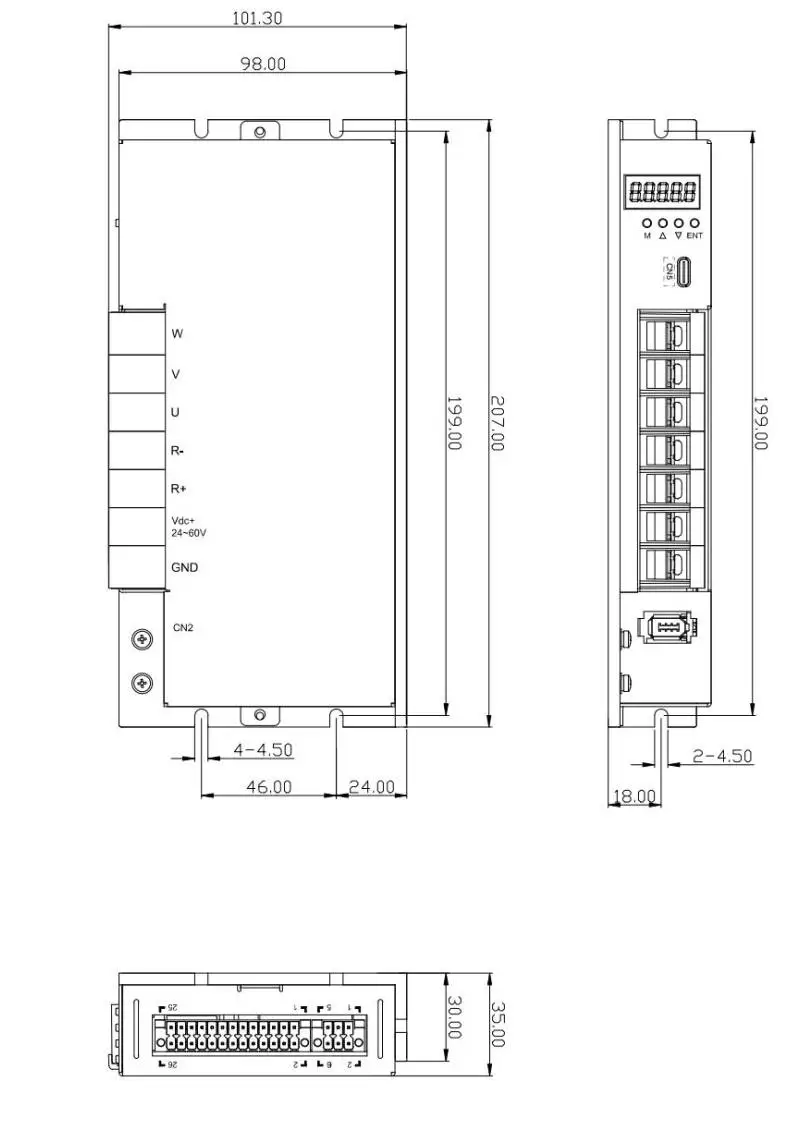

Key Specifications

• Supply power: 24-60 VDC
• Max output current: 80 A
• Control: ARM+FPGA, optimized current loop
• Analog command inputs: 2 (−10 V to +10 V)
• I/O: 6 DI, 4 DO
• Feedback: absolute encoder
• Interfaces: Type-C, RS485

Applications

Protections include overvoltage, undervoltage, overspeed and overload. The drive is used in Industrial Automation, packaging, robotics, inspection, semiconductor, medical instrumentation and printing. Its 80 A peak capability suits axes with high inertia where brief current surges are needed during acceleration.

Selection Considerations

Match the 80 A rating to your motor’s peak demand so thermal margin remains during repeated cycles. Confirm the 24-60 VDC bus and cabling can support the current draw, then use the single-parameter stiffness and auto-tuning functions to finish setup quickly. The absolute feedback is a practical benefit on machines that must resume from a known position after power loss, because no homing move is required at startup. When laying out the cabinet, keep the DC bus capacitor bank close to the drive and use conductors rated for the peak current so voltage drop does not degrade torque at speed.
