2A 2-Phase closed loop Stepper Drive for Compact Axes

2A 2-Phase closed loop Stepper Drive for Compact Axes

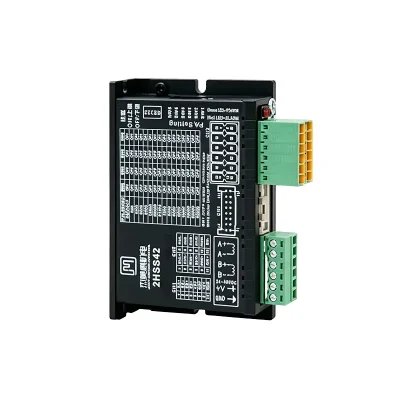

The 2A 2-Phase closed loop Stepper Drive 2HSS42 is a compact unit with a 2 A maximum output current and a 24-48 VDC supply range. It applies full closed loop control so position, speed, and current are regulated against encoder feedback instead of relying on open-loop step counting. Lyenwsin supplies this drive for NEMA17-class and lighter NEMA19-class motors used in small, precise machines.

Behaviour with Small Motors

At 2 A the drive suits the phase windings of small steppers without overdriving them. closed loop regulation keeps standstill current near the level the load needs, reducing heat that would otherwise soften a small frame’s temperature and expand its bearings. Lower thermal input and quieter operation are direct benefits in bench and enclosure-mounted equipment.

Size and Installation

Its reduced footprint suits control cabinets where panel space is scarce. Pulse/direction inputs keep it compatible with the step outputs of typical motion controllers, and the compact body fits alongside the small motor it drives.

Key Specifications

• Output current: max 2 A
• Supply voltage: 24-48 VDC
• Control mode: Pulse/Dir
• Feedback: full closed loop control
• Operation: high efficiency, low heat, low noise

Typical Applications

The drive is appropriate for robotics, compact CNC equipment, industrial automation, packaging and printing, textile and food processing, and automated handling where a small, low-current axis requires dependable closed loop positioning in a tight envelope. Laboratory instruments and small precision stations also benefit from its low heat output.

Selection Considerations

Match the 2 A maximum to the motor phase current and verify the 24-48 VDC bus stays within range. For battery-powered or thermally sensitive enclosures, the low standstill current is a practical advantage. Lyenwsin can help you confirm the motor-drive pairing for small-axis applications.

Ordering and Support

Lyenwsin offers the 2HSS42 with compatible NEMA17 motors and provides wiring diagrams, current-setting guides, and application support for small-axis machines and laboratory instruments. Our engineers can help you confirm the motor winding current and supply arrangement before deployment.
