60-120VDC 2-Phase Closed-Loop Stepper Drive for Automated Handling

The 2HSS858H-N is a 2-phase closed-loop stepper drive accepting 60-120 VDC or 50-90 VAC supplies with a 6 A maximum output current. Its higher bus-voltage range targets machines that need more torque at speed while keeping a simple stepper-style command interface.

Higher Bus Voltage, More Headroom

A 60-120 VDC bus lets the drive build winding current quickly, which maintains torque as stepping rate rises. For fast indexing and traverse axes, this headroom translates directly into shorter cycle times. The 50-90 VAC input option covers supplies derived from an AC transformer without a separate DC regulator.

Pulse/Dir Command

The drive accepts Pulse/Dir commands, the standard interface for PLCs and CNC controllers. No protocol conversion or fieldbus gateway is required for the step interface itself.

Closed-Loop Positioning

Full closed-loop control verifies the motor’s actual position and corrects deviations continuously. This prevents step loss on rapid accelerations and holds position during variable-load operations.

Thermal Characteristics

High efficiency and low heat generation keep the drive within comfortable thermal limits at higher bus voltages, and low noise keeps the machine pleasant to work near.

Typical Applications

Factory automation, packaging machinery, compact CNC equipment, robotics, automated handling mechanisms, textile machinery, printing machinery, and food processing.

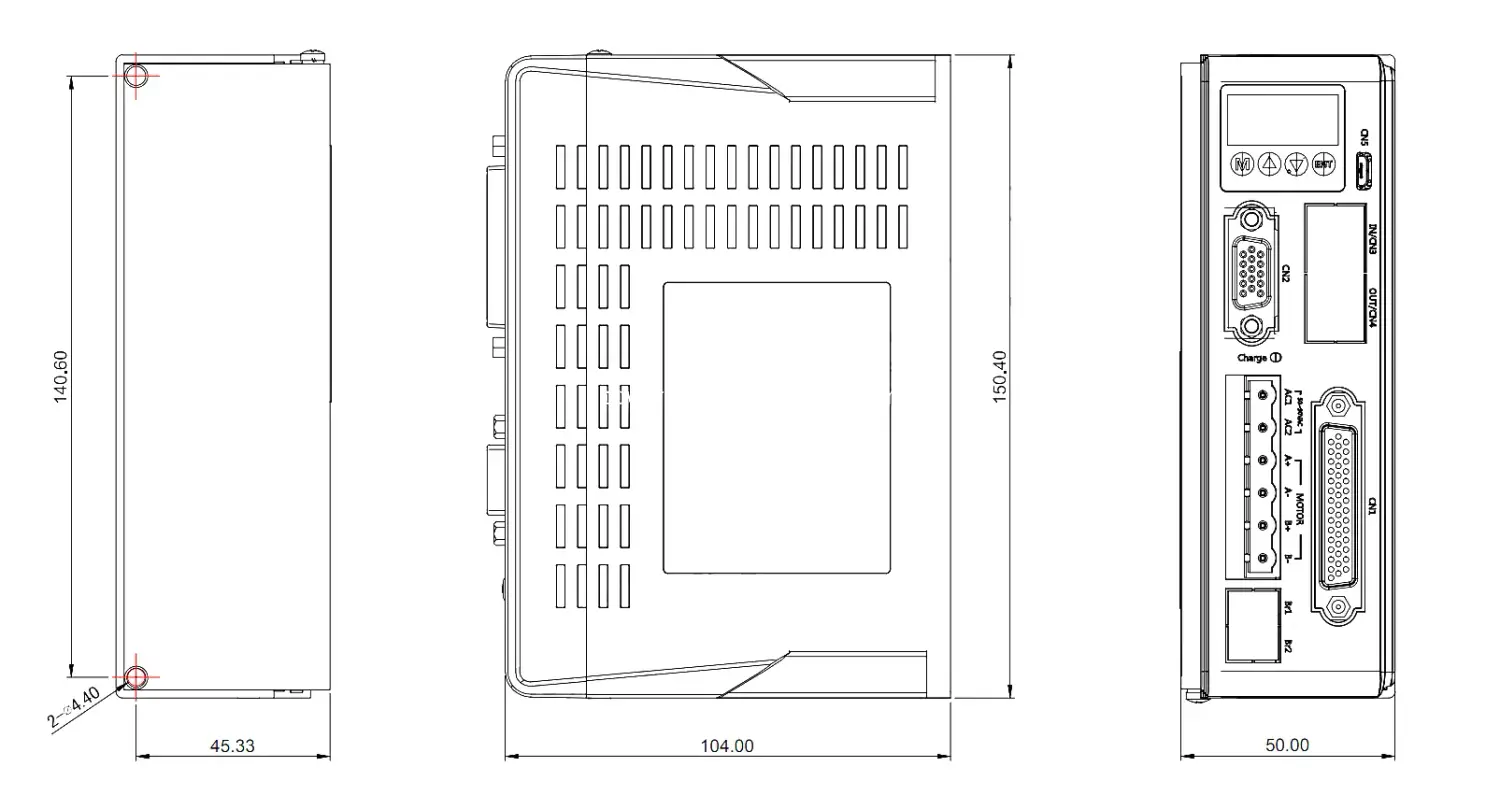

Key Specifications

• Type: 2-phase closed-loop stepper drive
• Supply voltage: 60-120 VDC, 50-90 VAC
• Max output current: 6 A
• Command mode: Pulse/Dir
• Control: full closed-loop
• Operating characteristics: high efficiency, low heat generation, low noise
