5A 2HSS458-N Closed-Loop Stepper Drive

The 2HSS458-N is a compact 2-phase closed-loop stepper drive for 24-60 VDC supplies with a 5 A maximum output current. It is a low-voltage, low-profile option for small axes that still demand dependable position control.

Compact Low-Voltage Design

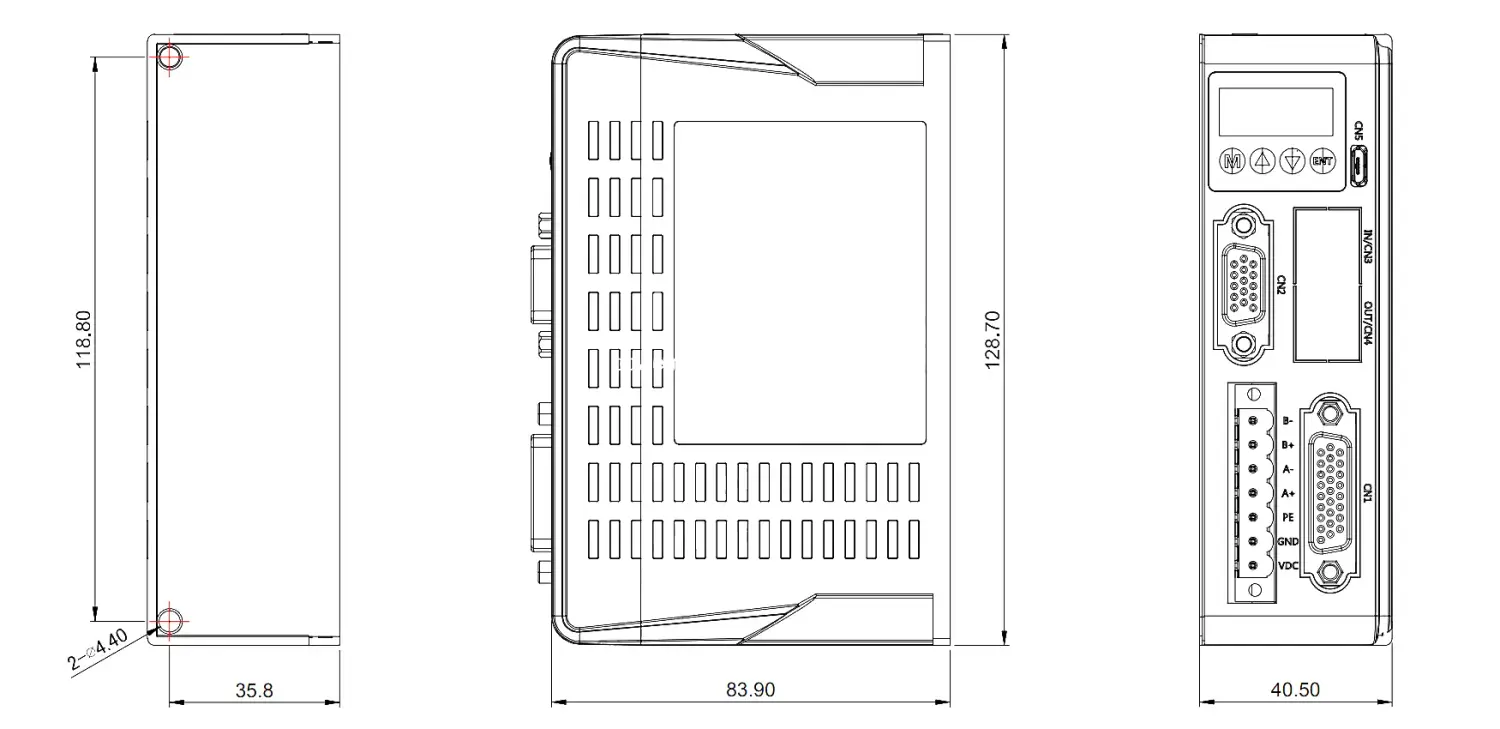

The 24-60 VDC operating range suits machines with an existing low-voltage bus, and the modest footprint makes it practical for small OEM panels and retrofits where space is limited.

Pulse/Dir Interface

The drive accepts Pulse/Dir step commands, connecting directly to motion controllers, PLC pulse outputs, or CNC interfaces without additional hardware.

Closed-Loop Control

Full closed-loop control monitors the motor’s actual position and corrects for deviations, so the axis does not accumulate step error over repeated cycles. This is especially valuable on compact CNC and handling equipment where positioning tolerances are tight.

Operating Characteristics

High efficiency, low heat generation, and low noise are specified, which suits food processing and printing environments where the machine runs alongside operators.

Typical Applications

Factory automation, packaging machinery, compact CNC equipment, robotics, automated handling mechanisms, textile machinery, printing machinery, and food processing.

Key Specifications

• Type: 2-phase closed-loop stepper drive
• Supply voltage: 24-60 VDC
• Max output current: 5 A
• Command mode: Pulse/Dir
• Control: full closed-loop
• Operating characteristics: high efficiency, low heat generation, low noise
