7.5 N.m NEMA 34 Closed-Loop Stepper Motor with 1,000 P/R Feedback

7.5 N.m NEMA 34 Stepper With Closed-Loop Feedback

The 86J1895EC-1000-LS delivers 7.5 N.m holding torque from a 95 mm NEMA 34 body at 6.0 A per phase. The 14 mm shaft provides a stiff output for direct coupling, and the compact length leaves more room inside equipment enclosures than longer motors in the same frame family.

Closed-Loop Control: Removing the Assumption From Open-Loop Stepping

A conventional stepper system commands position without verifying it. If the rotor stalls under a transient overload, the controller has no way to detect the loss. The 86J1895EC-1000-LS integrates a 1,000 P/R encoder and reports actual rotor position to the drive, which corrects any discrepancy. This eliminates the silent missed-step failure mode and lets the axis recover from brief overload rather than require a home cycle.

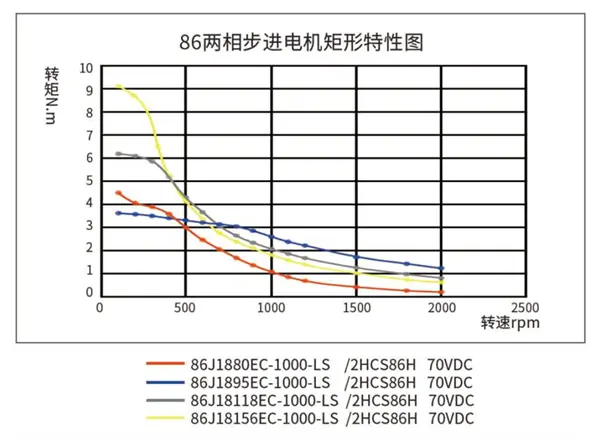

Speed and Torque Relationship

Holding torque is a standstill specification. As speed increases, torque drops because the winding cannot build full current within each electrical cycle. Closed-loop drives compensate with dynamic current control, extending the usable speed range while keeping temperature rise in check during idle phases.

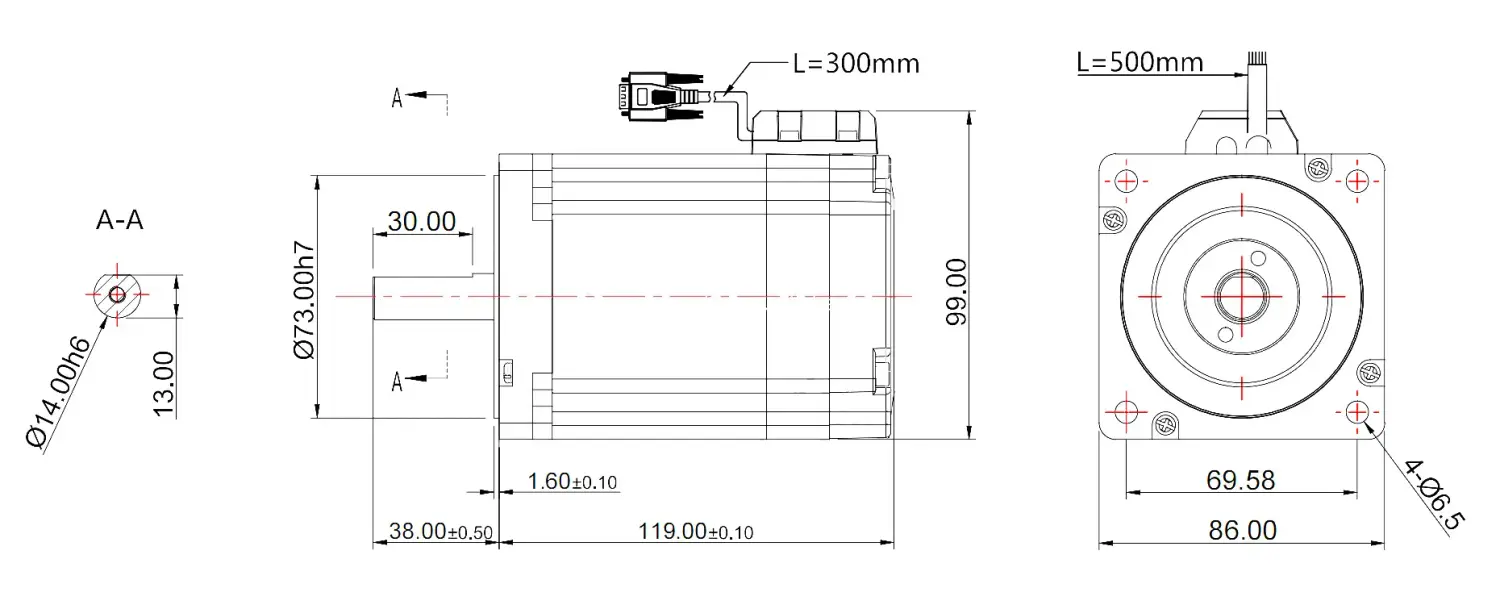

Specifications

• Frame size: NEMA 34
• Body length: 95 mm
• Phase count: 2-phase
• Phase current: 6.0 A
• Holding torque: 7.5 N.m
• Shaft diameter: 14 mm
• Feedback: integrated 1,000 P/R encoder

Applications

Typical duty includes CNC machine tools, packaging machinery, factory automation, precision robotic mechanisms, textile and printing machinery, food processing, and automated handling mechanisms. The 7.5 N.m rating supports geared pick-and-place and conveyor indexing where repeatable positioning matters more than peak speed.
