JAND15002-20B-DB44 1500W Servo Drive 220V, 19 A

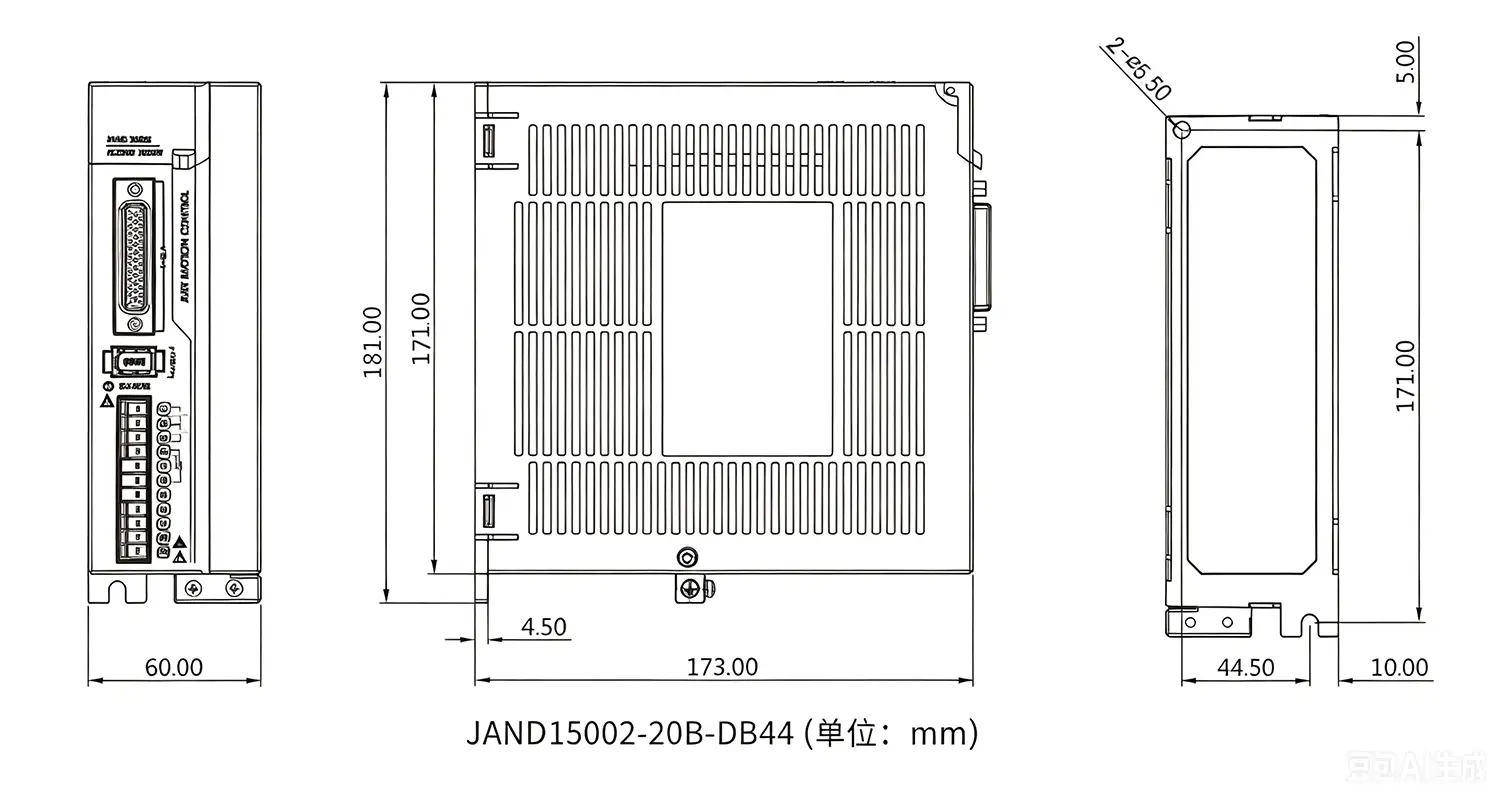

1500W Servo Drive 220V for Single-Axis Machines

The JAND15002-20B-DB44 is a 1500W Servo Drive 220V unit rated at 1500 W with a 19 A maximum output current from a 220VAC supply. It is a single-axis high-voltage servo drive aimed at conventional CNC and machine-tool axes where the drive and motor are mounted separately.

Control Platform and Loop Behaviour

The ARM+FPGA dual-chip platform drives an optimized current loop sampled at 625 kHz, with PWM frequency adjustable in three steps (8/10.667/16 kHz) to suit different motors. One-parameter stiffness setting and one-click loop auto-tuning reduce commissioning time, and adaptive vibration suppression with a notch filter provides automatic resonance detection and elimination, plus one-click resonance suppression.

Feedback and Interfaces

17/23-bit absolute feedback maintains axis position across a power cycle. Two −10 V to +10 V analog command inputs and 8 digital inputs plus 5 digital outputs provide flexible command and interlocking. MicroUSB and RS485 interfaces handle configuration and serial communication; wiring is kept simple with mostly pin-header terminations.

Specifications

• Rated power: 1500 W
• Max output current: 19 A
• Supply: 220 VAC
• Analog inputs: 2 × −10 V to +10 V
• I/O: 8 digital in, 5 digital out
• Feedback: 17/23-bit absolute encoder
• Interfaces: MicroUSB, RS485
• Braking: built-in resistor, external supported
• Protection: overvoltage, undervoltage, overspeed, overload

Braking and Protection

A built-in braking resistor handles normal regeneration, extendable with an external resistor. Overvoltage, undervoltage, overspeed, and overload protection guard the power stage under fault conditions.

Application Fit

It fits CNC machine tools, Industrial Automation, semiconductor equipment, robotics, battery manufacturing, material handling, and packaging where a 1.5 kW 220 V single-axis servo drive is needed. Distributors can match this drive with a standard 1.5 kW servo motor from the same family for a complete axis solution. Because the DB44 wiring variant carries a full set of analog and digital I/O, it is a good fit for retrofit panels where the existing controller expects separate enable, alarm, and position-ready signals.
