JASND55003 5500W High-Voltage Servo Drive, 24 A, 380 V Three-Phase

5500W High-Voltage Servo Drive for Heavy CNC Axes

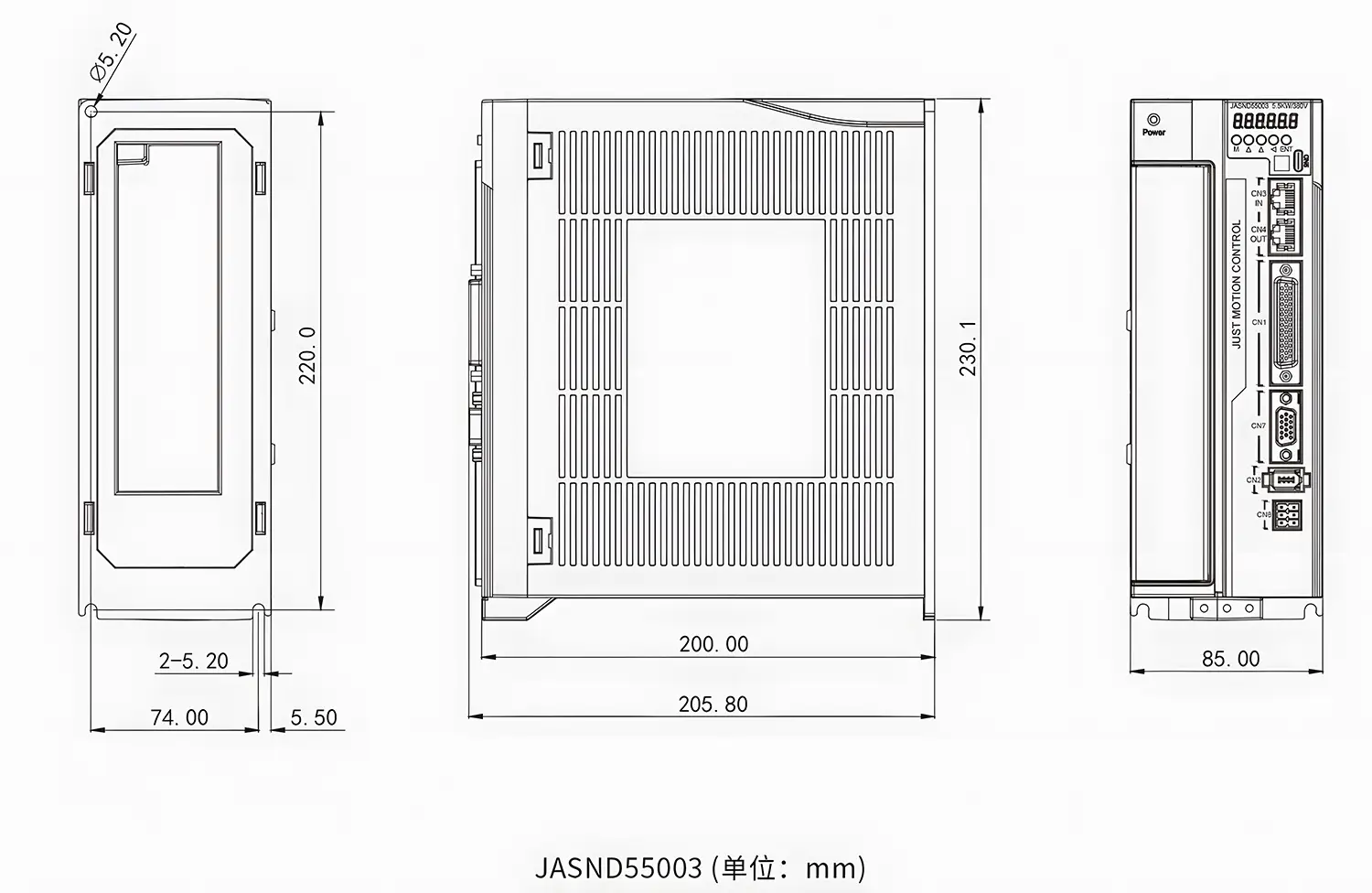

The JASND55003 is a 5500W High-Voltage Servo Drive accepting three-phase AC 330-440 V input at 50/60 Hz. With a 24 A maximum output current, it is sized for the heavier servo axes found in large CNC machines and high-throughput manufacturing cells where sustained torque and fast response are both required.

Control Platform and Loop Performance

An ARM+FPGA dual-chip platform runs the current loop at a 625 kHz sampling frequency, with PWM switching selectable at 8, 10.667, or 16 kHz to match different motor windings. One-parameter loop setting and one-click auto-tuning reduce commissioning effort, while adaptive vibration suppression, an adaptive notch filter, and one-click resonance elimination handle mechanical resonance without repeated manual filter tuning.

Feedback and Interfaces

Feedback is handled by a 17/23-bit absolute encoder, preserving axis position across power cycles. Analog reference input and output are provided in the −10 V to +10 V range, and 8 digital inputs plus 5 digital outputs give ample I/O for interlocking. Communication uses Type-C and RS485 interfaces.

Key Specifications

• Rated power: 5500 W
• Max output current: 24 A
• Supply: Three-phase AC 330-440 V, 50/60 Hz
• Analog inputs: 2 × −10 V to +10 V
• Analog output: 1 × −10 V to +10 V
• I/O: 8 digital in, 5 digital out
• Feedback: 17/23-bit absolute encoder
• Interfaces: Type-C, RS485
• Braking: external resistor supported (no built-in resistor)
• Protection: overvoltage, undervoltage, overspeed, overload

Thermal and Braking Considerations

This model carries no built-in braking resistor, so an external resistor must be sized to absorb regeneration energy on high-inertia deceleration. Protection covers overvoltage, undervoltage, overspeed, and overload, keeping the power stage within its operating envelope under fault conditions.

Safety and Secondary Functions

A secondary encoder function, built-in brake output, and STO safety interface are provided, supporting safe torque off and coordinated brake release in interlocked machinery.

Application Fit

It suits CNC machine tool axes and spindles, Industrial Automation, semiconductor equipment, robotics, battery manufacturing, material handling, and packaging machinery that require a 380 V three-phase class servo drive. Distributors should confirm the external braking resistor value against the machine’s inertia before quoting the package.
