0.7 N·m Integrated Stepper Motor in a 42 mm Frame

Overview

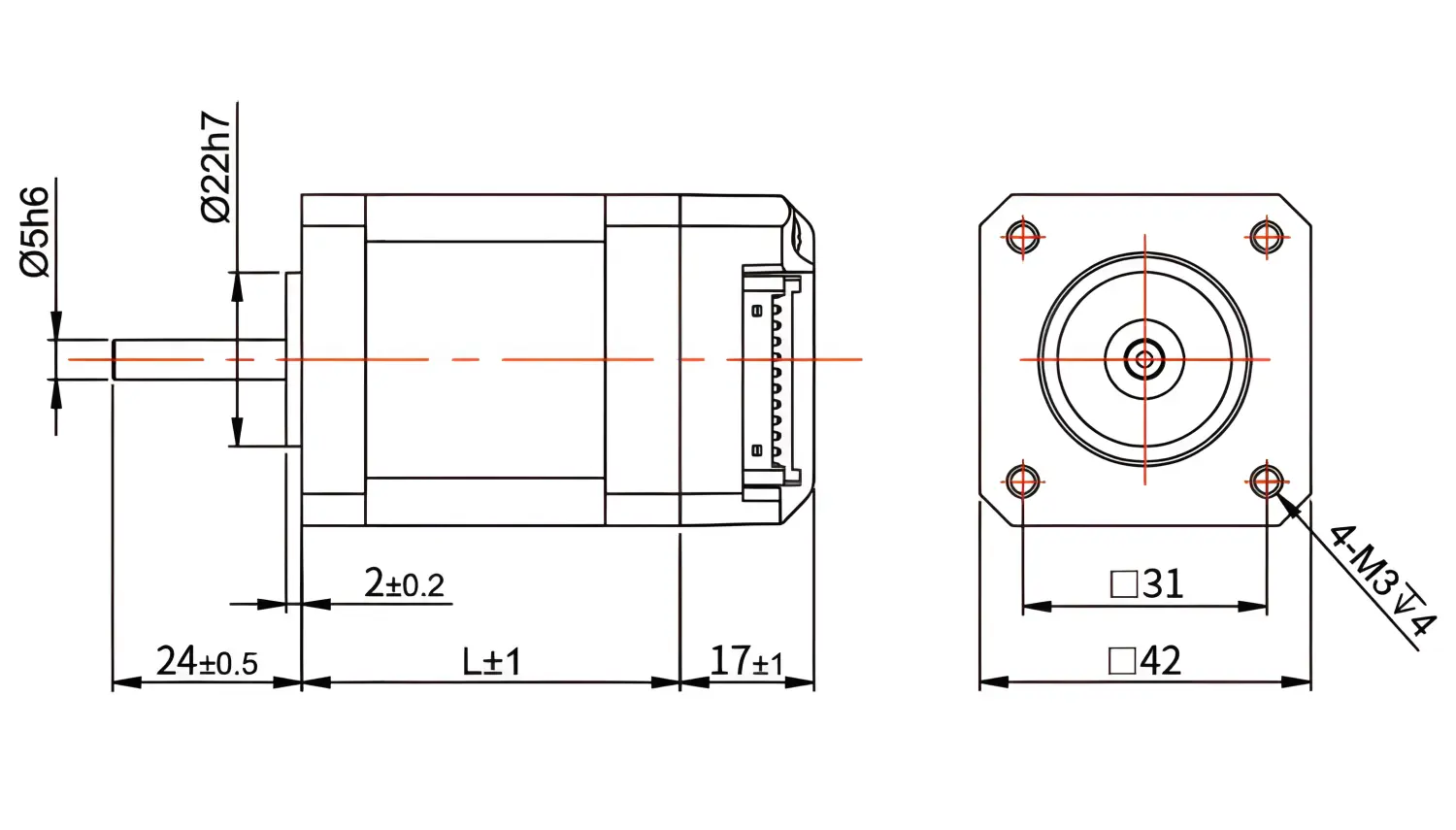

The iESSC42-24-07 is a 0.7 N·m Integrated Stepper Motor built on a 42 mm frame with a 60 mm body length. The driver and motor are combined in one unit, which reduces cabinet space and simplifies the wiring needed for a complete axis.

Encoder Feedback

A 1000 P/R incremental encoder on the shaft supplies position information to the integrated controller. The closed loop corrects positioning errors in real time, so the motor does not rely on step counting alone. This improves reliability in applications with varying load and frequent starts and stops.

Torque and Temperature

Holding torque is rated at 0.7 N·m with a rated current of 1.7 A. The low rated current keeps power dissipation modest, and the low-heat design means the motor can be mounted close to sensitive components. Low vibration improves smoothness in light conveying and positioning duties.

Specification List

• Frame size: 42 mm
• Body length: 60 mm
• Holding torque: 0.7 N·m
• Rated current: 1.7 A
• Feedback: 1000 P/R incremental encoder

Why a 42 mm Integrated Motor Works Here

The small frame and integrated drive make this motor attractive for machines where space is limited but closed loop positioning is still required. Because the driver is built in, there is no separate drive to mount, which cuts cabinet size and reduces the wiring work for small indexing and positioning stations.

Application Fields

The motor suits industrial automation, packaging machinery, robotics, and CNC machine tools where a small integrated closed loop drive is preferred. The compact 42 mm frame is also a good match for laboratory instruments, small indexing devices, and precision positioning tables.

Selection Considerations

Confirm the 1.7 A supply requirement and the 60 mm body length against the layout. Because the frame is small, keep duty cycle moderate for continuous operation. Our support engineers can help verify the load torque and provide the connector and wiring diagram for this 0.7 N·m Integrated Stepper Motor.
