5.6A 3-Phase Stepper Drive for Smooth Axes

5.6 A Three-Phase Stepper Drive

The 3DM2060H is a three-phase stepper drive offering up to 5.6 A of output current from an 80-220 VAC supply. It targets 3-phase stepper systems in the mid-torque class where smooth, quiet motion is a priority.

Command Compatibility

Both Pulse/Dir and CW/CCW pulse modes are accepted, so the drive works with standard CNC and PLC step outputs. Open-loop operation means the axis follows commanded steps directly, removing the need for encoder feedback and closed-loop configuration.

Motion Quality and Protection

The output stage is engineered for low noise and vibration, which reduces mechanical wear and audibility in operator-occupied areas. Onboard overcurrent, overvoltage, and undervoltage protection help isolate the drive and motor from supply or wiring faults.

Applications

The drive is suited to Factory Automation, Packaging Machinery, Compact CNC Equipment, Robotics, Automated Handling Mechanisms, Textile Machinery, Printing Machinery, and Food Processing.

• Output current: max 5.6 A
• Supply voltage: 80-220 VAC
• Control modes: Pulse/Dir, CW/CCW pulse
• Protection: overcurrent, overvoltage, undervoltage
• Operation: open-loop, low noise and vibration

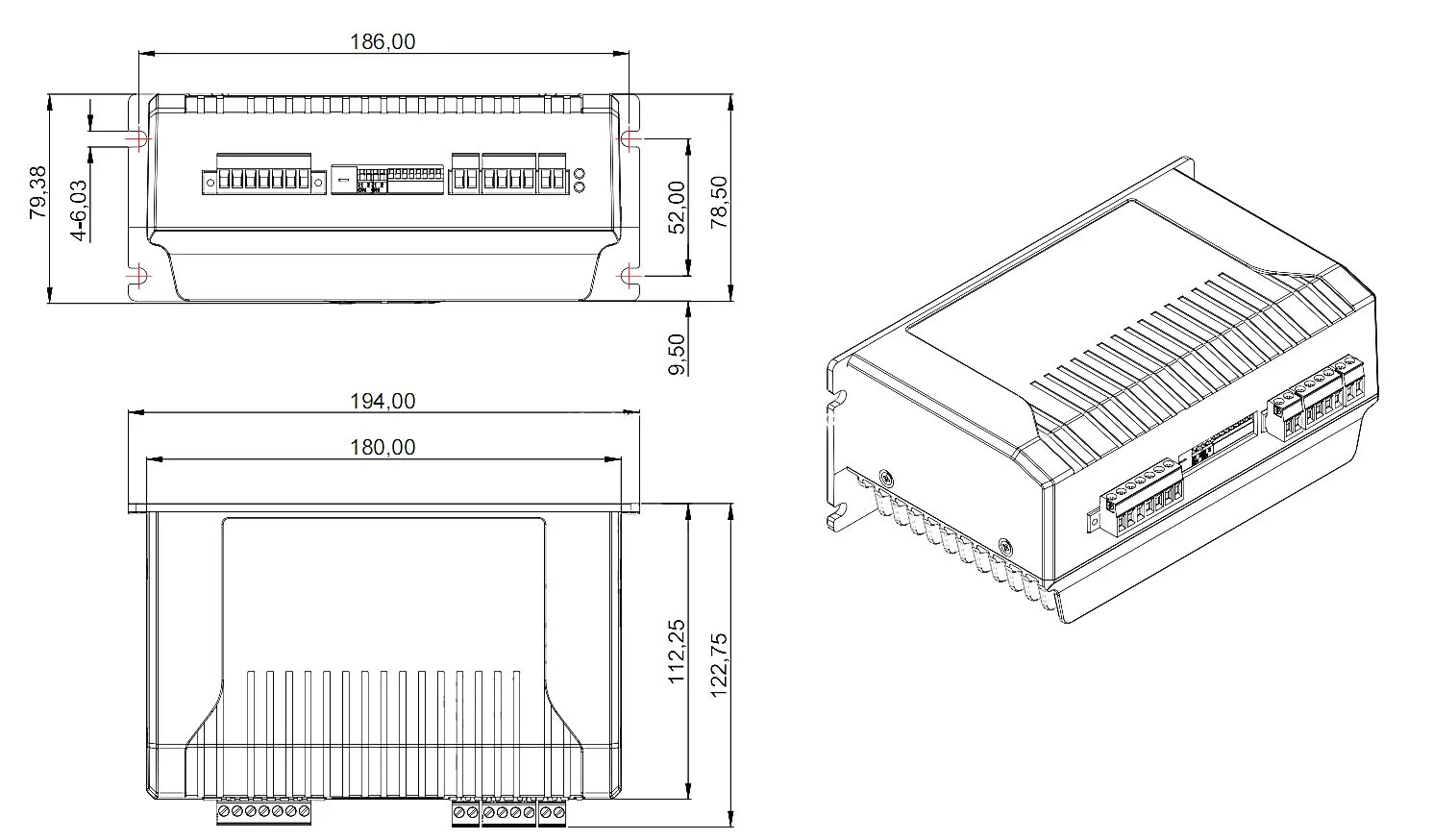

Integration

Choose a 3-phase motor with phase current at or below 5.6 A. The wide AC input range allows the same drive model to be used across differing line voltages.
