• 80-220 VAC supply voltage , max 8.0 A output current
• Pulse/Dir; CW/CCW Pulse Mode
• Low noise and vibration, smooth motion
• Overcurrent , overvoltage , undervoltage protection
This stepper motor driver supports parameter auto-tuning, motor self-adaptation, overcurrent protection, overvoltage protection, undervoltage protection, convenient current and microstep setting via DIP switches, and input signals compatible with 5-24V.

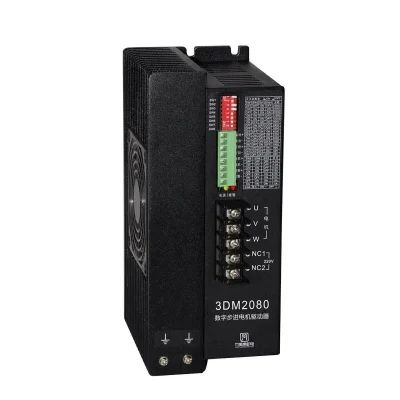

| Model | 3DM2080 |
| Phase | 3 |
| Supply Voltage(V) | AC(80-220) |
| Output Current(A) | 2.0-8.0 |
| Control mode | Pulse/Dir；CW/CCW |
| Signal voltage(V) | 5-24V |
| Matched Motor | 86,110,130 |
