8.3A 3-Phase Stepper Drive DC for Low-Voltage Automation

8.3A 3-Phase Stepper Drive DC for Low-Voltage Systems

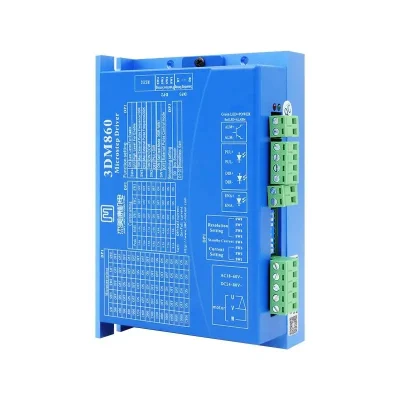

The 8.3A 3-Phase Stepper Drive DC 3DM860 is rated for up to 8.3 A of output current, driven from a 24-80 VDC supply or an 18-60 VAC input. The lower voltage envelope fits cabinet designs built around existing low-voltage DC supplies. Lyenwsin supplies this drive for light CNC equipment and compact automation.

Command and Control

It accepts Pulse/Dir and CW/CCW pulse modes, connecting directly to PLC or controller step outputs. Open-loop control means no encoder feedback loop is needed, keeping the integration straightforward on single- or multi-axis machines.

Protection and Motion Quality

Overcurrent, overvoltage, and undervoltage protection monitor the drive under fault conditions. The output stage is tuned for low noise and vibration, contributing to smoother stepper operation and reduced mechanical loading.

Key Specifications

• Output current: max 8.3 A
• Supply voltage: 24-80 VDC; 18-60 VAC
• Control modes: Pulse/Dir, CW/CCW pulse
• Protection: overcurrent, overvoltage, undervoltage
• Operation: open-loop, low noise and vibration

Target Applications

The drive serves industrial automation, packaging machinery, compact CNC equipment, robotics, automated handling mechanisms, textile machinery, printing machinery, and food processing.

Selection

Match to a 3-phase motor with phase current within 8.3 A. Confirm the low-voltage architecture suits the held-torque and speed requirements of the axis before deployment. Lyenwsin provides application engineering support to confirm the drive and motor pairing for low-voltage systems.

Distributor Support

Lyenwsin keeps the 3DM860 in stock with matched low-voltage 3-phase motors and provides torque-speed data, wiring guidance, and configuration support. Our team can confirm the motor pairing and supply wiring for light CNC and compact automation systems before production begins, and we keep documentation available for commissioning. For battery-powered or thermally sensitive enclosures, we can help verify the standstill current and cooling margin, and recommend an appropriate supply filter where the bus is shared with other equipment.
