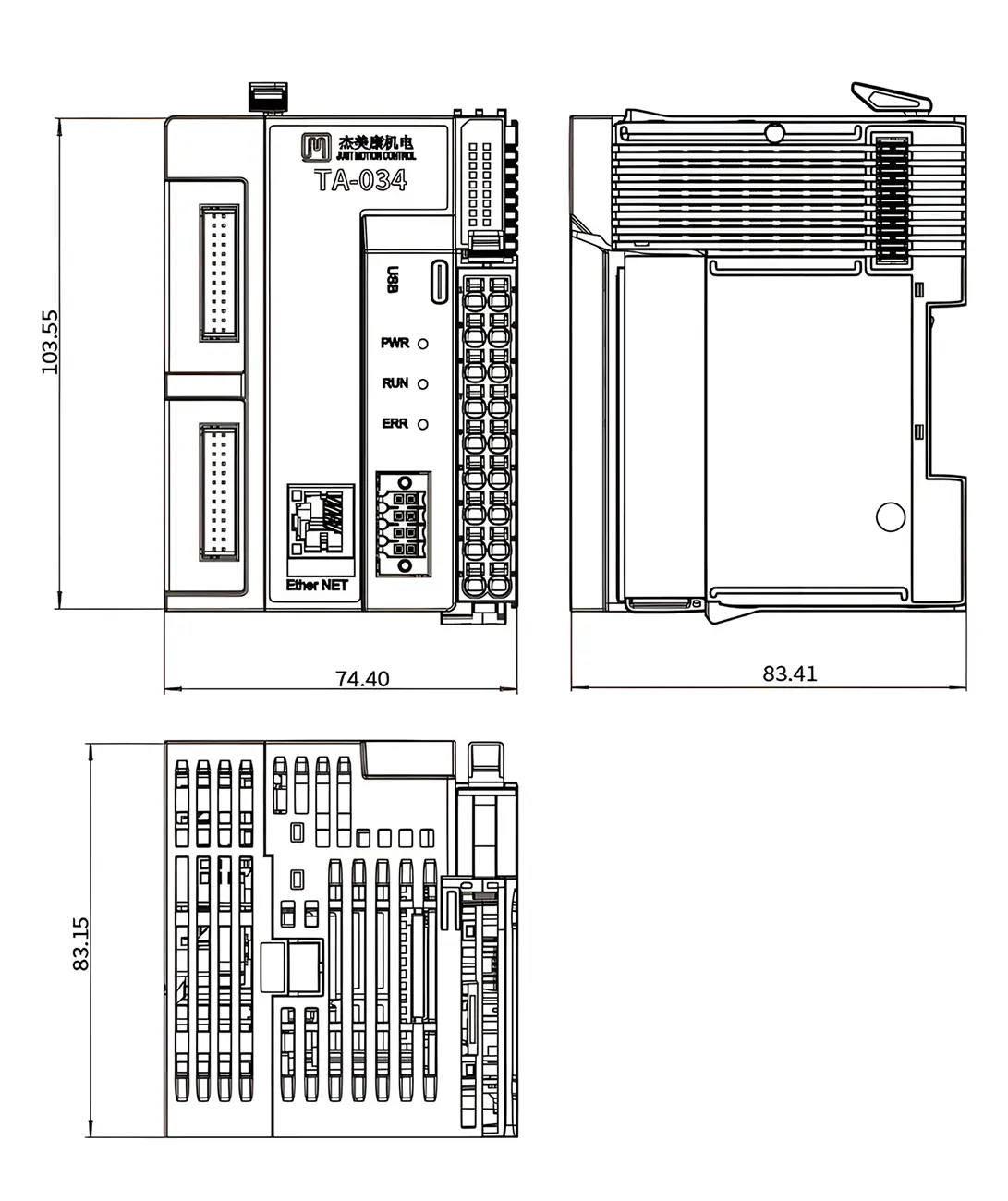

6-Axis Pulse Motion Controller TA-034 with Expandable Digital I/O

The TA-034 is a 6-Axis Pulse Motion Controller TA-034 that generates pulse output to drive up to six servo or stepper axes together, making it a dependable building block for machines that rely on step/direction drive interfaces. With 8 digital inputs and 8 digital outputs on board, expandable to 31 additional I/O blocks, it covers machines that need both coordinated motion and a growing amount of discrete I/O.

Six-Axis Pulse Control

The controller keeps axis coordination precise while handling the timing required by multi-axis machines. Because it outputs standard pulse trains, it works with the wide installed base of step/direction servo and stepper drives without requiring each drive to support a fieldbus.

I/O and Expansion

I/O can be expanded to 31 additional blocks, each providing 8 inputs and 8 outputs, so the digital I/O footprint can grow with the machine. This is useful for material handling systems where sensors and actuators are added as the line evolves.

Communication Interfaces

RS485 and RS232 serial ports, a USB 2.0 port, and one Ethernet interface are provided. These connections allow the controller to exchange data with HMIs, host PCs, and factory networks.

Specification Summary

• Processor: ARM A7 triple core, 1.0 GHz
• Memory: 128 MB RAM, 512 MB storage
• Axes: 6 (pulse output)
• I/O: 8 DI, 8 DO, expandable to 31 x (8 DI + 8 DO)
• Interfaces: RS485, RS232, USB 2.0, Ethernet

Applications

The TA-034 targets factory automation, robotics, packaging machinery, CNC machine tools, semiconductor equipment, inspection equipment, and material handling systems that run on pulse-controlled axes. Conveyor diverters, rotary indexing tables, and pick-and-place mechanisms are common examples.

Selection Notes

Confirm that all six axes use pulse-compatible drives and that the total I/O expansion stays within 31 blocks. Plan the RS485 and Ethernet connections for HMI and network integration. Lyenwsin provides wiring diagrams and application guidance to help you integrate the controller into your machine.
