42mm closed loop Stepper Motor (NEMA17) with Encoder

Compact 42 mm closed loop Stepper

The iHSS42-24-07 is a 42mm closed loop Stepper Motor that mounts a digital stepper drive and a 42 mm NEMA17-frame motor in one assembly, with a 60 mm stack length. Its 1000P/R incremental encoder closes the position loop, so the drive can confirm the rotor reached its target rather than assuming it did. This makes the motor a practical fit for axes where an ordinary stepper would risk losing steps under variable load.

Encoder Feedback and Thermal Behavior

With 0.7 N·m of holding torque and a 1.7 A rated current, the motor is sized for smaller mechanisms and short strokes. Because position feedback lets the drive reduce coil current once motion settles, heat generation stays low in the idle condition, which matters when the motor is buried inside a compact machine frame. Vibration is lower than a comparable open-loop step at low speed because the controller can manage commutation against the measured rotor angle.

Application Fit

Fast acceleration is achievable within the limits of the torque available at the operating speed; as with any NEMA17-class unit, reserve torque for inertia-rich starts. Typical placements include robotics joints and end-effector positioning, packaging machinery small motion stations, factory automation positioning and indexing axes, and CNC machine tool auxiliary axes. The NEMA17 frame also fits 3D printers, laboratory equipment and medical devices where a small closed loop axis improves reliability.

Specifications

• Frame size: 42 mm

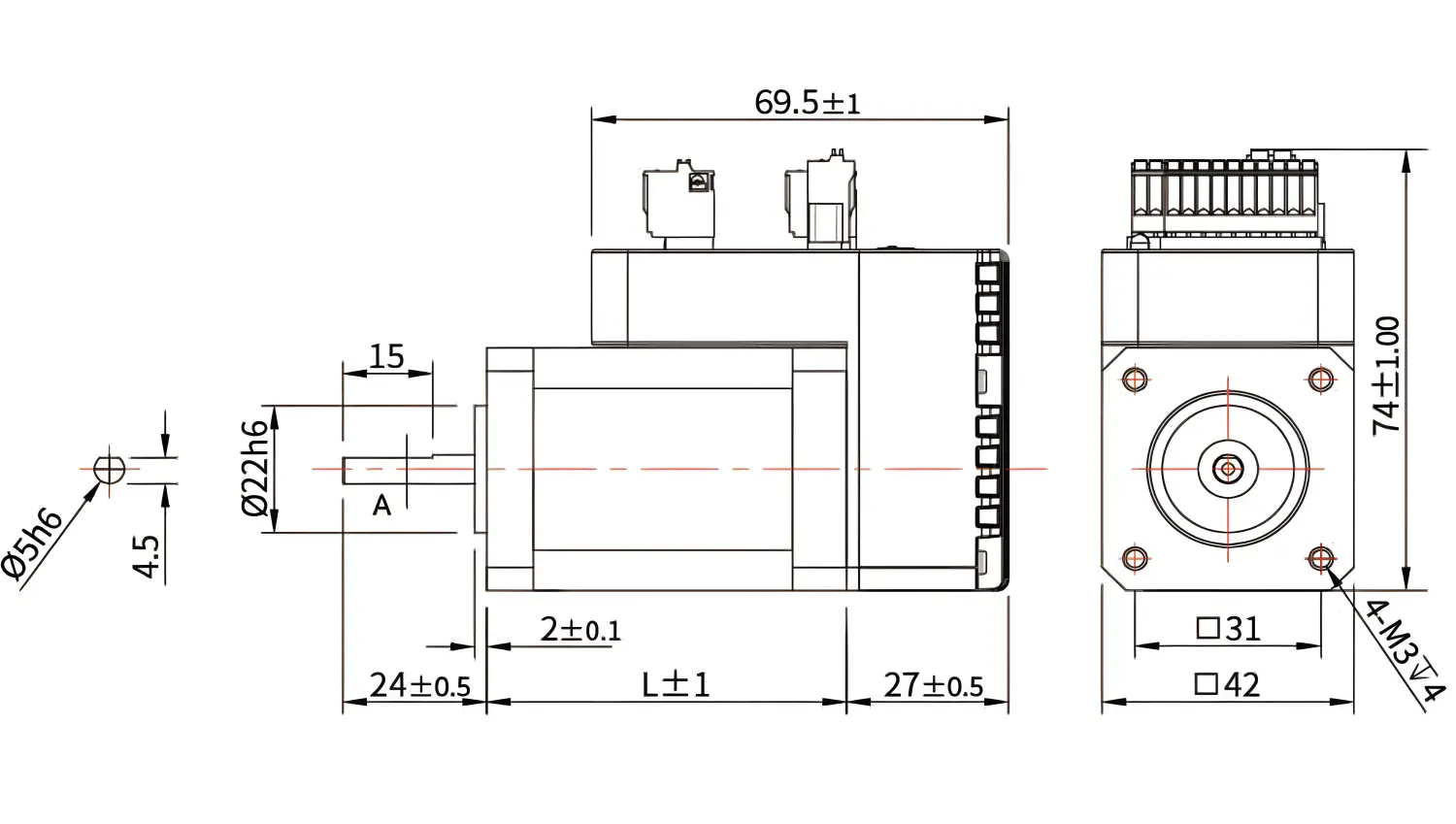

• Length: 60 mm

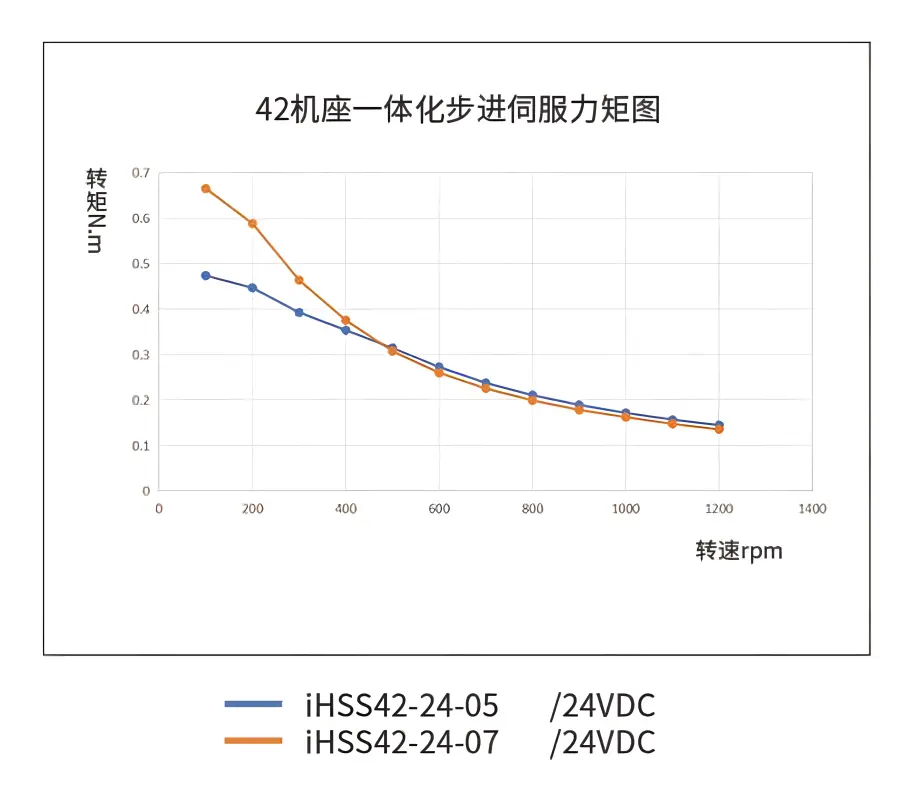

• Holding torque: 0.7 N·m
• Rated current: 1.7 A
• Feedback: 1000P/R incremental encoder
• Characteristics: low heat generation, low vibration, fast acceleration

Selection Considerations

Where board-space and panel-space are limited but closed loop reliability is required, the iHSS42-24-07 keeps the drive out of the cabinet and next to the axis it controls. Confirm the 42 mm flange and 60 mm body fit the machine, and verify the 1.7 A feed against the power budget. Lyenwsin can supply this unit with wiring guidance and support for your specific application.
