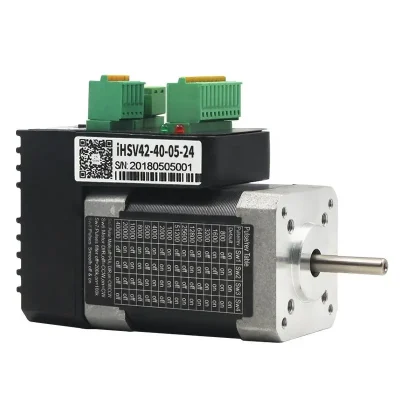

52W Integrated Servo Motor for Light-Duty Axes

Smallest footprint in the series

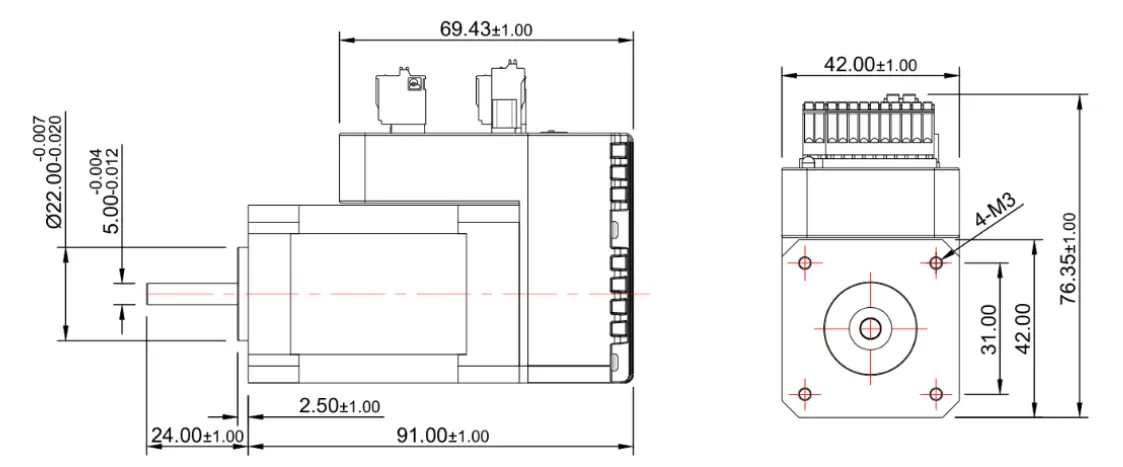

With a body length of only 57 mm, the iHSV42-40-05-24 is the most compact unit in this batch. It is rated at 52 W and 3.4 A with a 4000 RPM rated speed in a 42 mm frame. The drive is integrated into the housing, so the whole servo axis occupies roughly the volume of a conventional motor alone.

Digital closed-loop control

The unit implements closed-loop control of position, speed and current using the incremental encoder for feedback. Integrated loop closure removes the separate drive and its wiring from the design.

Thermal behavior of a small integrated unit

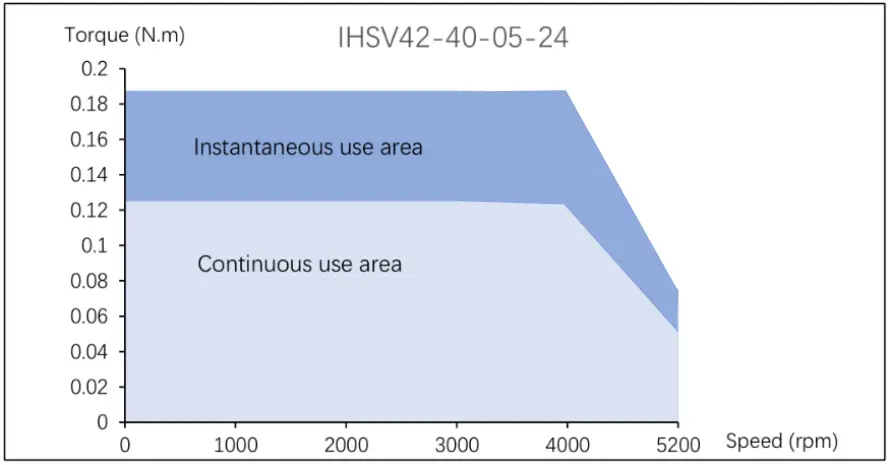

The 3.4 A continuous rating sets the sustained current limit. Because the frame is small, the axis is suited to light-duty cycles rather than continuous high load. Low vibration and simple wiring make it a practical choice for compact machines.

Applications

Factory automation, packaging machinery, robotics and CNC machine tools where a 42 mm integrated axis fits the layout.

Key specifications

• Frame size: 42 mm
• Body length: 57 mm
• Rated power: 52 W
• Rated current: 3.4 A
• Rated speed: 4000 RPM
• Encoder: incremental
• Integration: drive and motor in one unit
