• 3 phase, NEMA 24 frame size
• 92 mm long
• 1.5 A phase current
• 2.6 N.m holding torque
• 8 mm shaft size
• Integrated 17bit encoder,
• high efficiency,low noise,fast response, high torque, high speed and low vibration。
The 60J1292EC-17BC is a 2.6 Nm 3-Phase Stepper Motor in a NEMA 24 frame, rated 1.5 A per phase with 2.6 N·m holding torque on an 8 mm shaft and a 92 mm body. The low phase current and three-phase winding keep heat and vibration low, which suits precision positioning mechanisms and multi-axis stations.
The integrated 17-bit encoder gives the drive high-resolution rotor position feedback. Any step loss is detected and corrected immediately, so battery equipment and handling mechanisms maintain accurate registration over long cycles. The closed loop also lets the drive reduce standing current between moves, which keeps the compact motor cool in tightly packed machines.

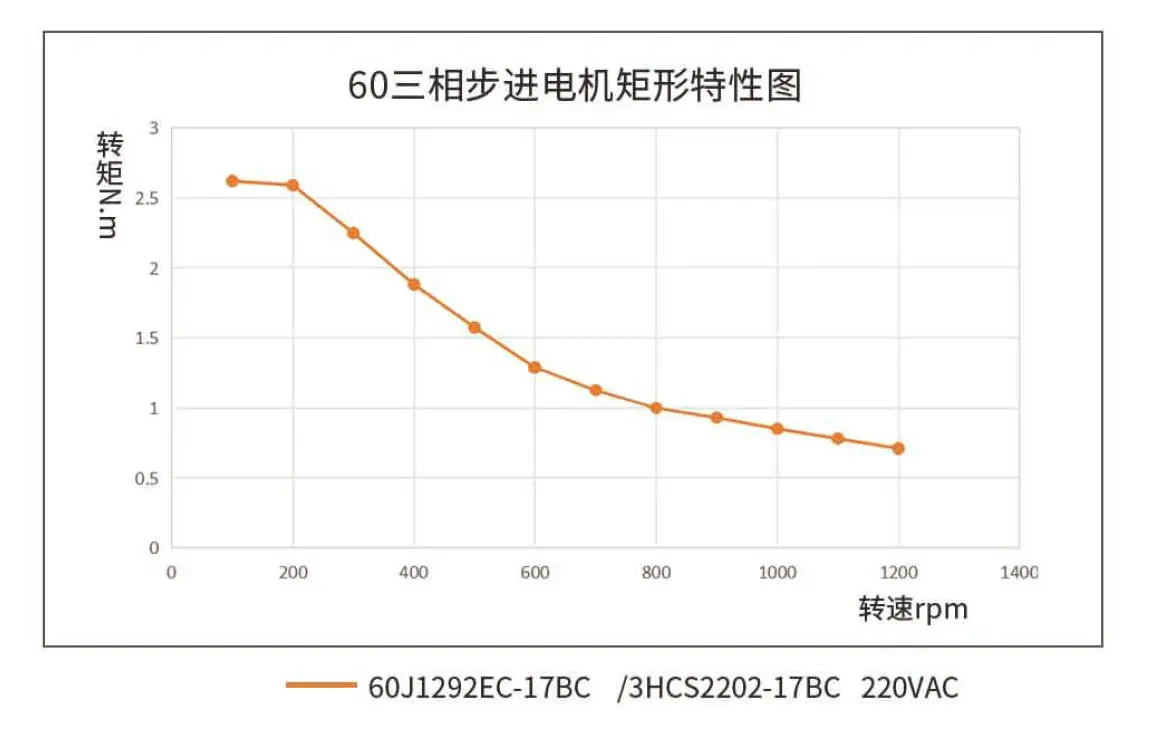

Holding torque is measured at standstill with rated current. Available torque falls with speed due to winding inductance. The 1.5 A rating makes this one of the lower-current options in the NEMA 24 range, reducing the drive and wiring requirements in multi-axis systems.
Typical use includes packaging machinery, factory automation, precision robotic mechanisms, textile and printing machinery, food processing, automated handling mechanisms, and precision positioning mechanisms for battery equipment. The 2.6 N·m rating and low current suit battery cell positioning and multi-axis handling stations. Lyenwsin offers this motor with matched drives and cabling for easy integration.

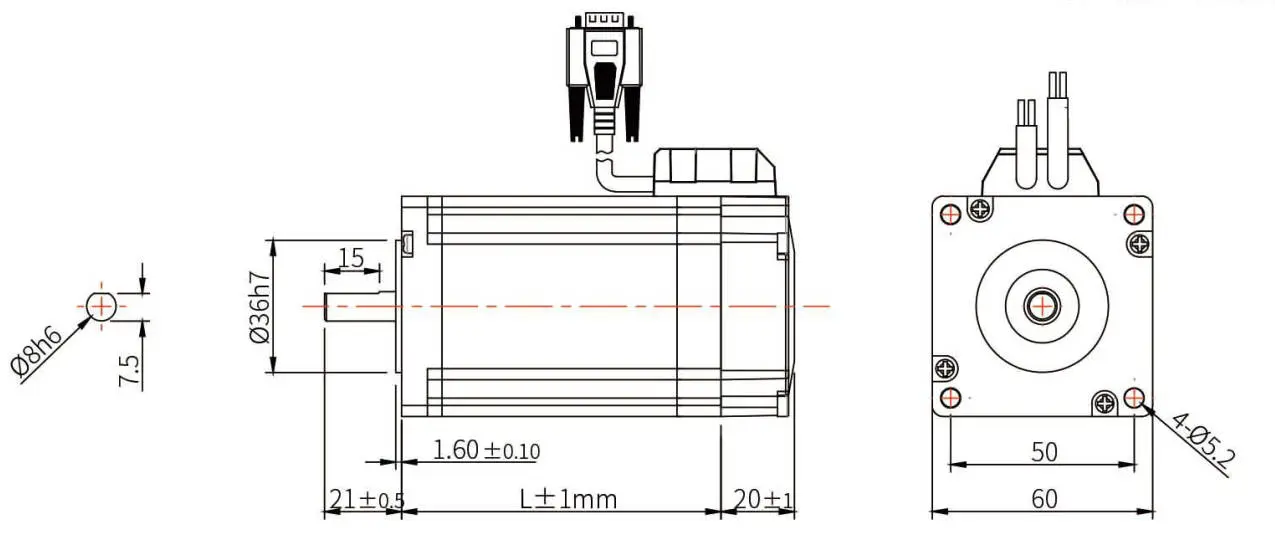

Because each axis draws only 1.5 A, a single compact drive cabinet can power several stations. Confirm the encoder plug matches your drive family, and check that the 8 mm shaft fits the intended coupling. Our team can supply dimensional drawings and torque-speed curves for the final design review.
| Model | 60J1292EC-17BC |
| Phase | 3 |
| Frame Size（NEMA） | 24 |
| Length(mm) | 92 |
| Step Angle（deg） | 1.2 |
| Holding Torque（N·m） | 2.6 |
| Rated Current（A） | 1.5 |
| Phase Resistance（ohms） | 6 |
| Phase Inductance（mH） | 12.5 |
| Rotor inertia（g·cm²） | 710 |
| Weight（kg） | 1.75 |
| Matched Drive | 3HCS2202-17BC |
| Encoder Resolution | 17bit |
| Shaft Diameter（mm） | 8 |
| Frame Size（mm） | 60 |
