8.5 N·m Integrated closed loop Stepper Motor with EtherCAT, CAN and RS485 (iHSS86-80-85-RC/EC)

The iHSS86-80-85-RC/EC is an 8.5 N·m Integrated closed loop Stepper Motor in an 86 mm frame, with the fieldbus stepper drive mounted directly on the motor body. This single-unit construction removes the separate driver enclosure that normally consumes panel space, shortens cable runs between driver and motor, and simplifies machine assembly for multi-axis systems.

Motor and Drive in One 86 mm Package

With the drive electronics on the motor, the encoder cable, motor power cable, and signal wiring of a conventional stepper axis are eliminated. Each axis connects to the DC bus and the network, which reduces wiring points, eases service access, and keeps the control cabinet smaller. For machines with several axes, the benefit multiplies with every unit installed.

closed loop Control With 1000 P/R Feedback

A 1000 P/R incremental encoder closes the position loop. Instead of trusting open-loop step counts, the drive monitors actual rotor position and applies real-time error correction. This keeps the axis stable under changing load and reduces missed-step risk at start-stop transitions and during low-speed operation where open-loop steppers are most vulnerable.

Fieldbus Connectivity: RS485, CAN and EtherCAT

Three communication options let the axis join an existing control network without protocol converters. EtherCAT suits high-speed synchronized multi-axis systems; RS485 and CAN fit simpler standalone or PLC-controlled lines. Protocol selection happens at configuration, so one motor model can serve different machine lines.

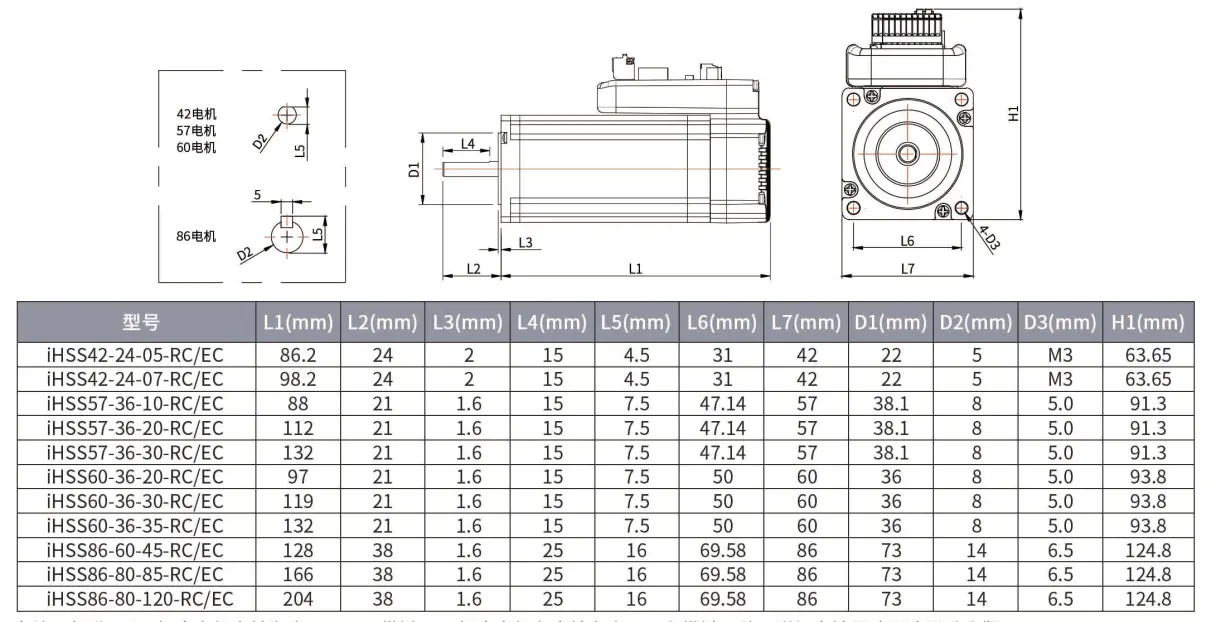

Key Specifications

• Frame size: 86 mm
• Holding torque: 8.5 N·m
• Rated current: 6.0 A
• Supply voltage: 80 VDC
• Feedback: 1000 P/R incremental encoder
• Communication: RS485, CAN, EtherCAT

Application Focus: CNC, Packaging and Automated Handling

With 8.5 N·m of holding torque and network control, this unit fits CNC machine tool axes, packaging machinery indexing, textile and printing drives, food-processing lines, and automated handling mechanisms where holding torque and synchronized motion matter more than raw speed.

Selection Guidance

Confirm that the machine supply can deliver 80 VDC at the required current and that the frame temperature stays within the recommended limits under continuous duty. Lyenwsin’s technical support team can provide the torque-speed curve and fieldbus setup documentation for your specific control architecture.
