NEMA24 closed loop Stepper Motor With Brake – 3.5 N·m, 100 mm, 1,000 P/R Encoder

The Middle Ground Between NEMA 23 and NEMA 34

The 60J18100EC-1000-LS-SCG is a NEMA24 closed loop Stepper Motor With Brake rated at 3.5 N·m holding torque and 5.0 A phase current. With a 100 mm body, an 8 mm shaft, and an integrated 1,000 P/R encoder, it fills the mid-range of machine automation where NEMA34 is oversized and NEMA23 is not enough. Lyenwsin supplies this motor as part of a coordinated closed loop motion package for packaging and textile machinery.

closed loop Accuracy with Integrated Encoder

The integrated 1,000 P/R encoder closes the position loop around the motor. Step loss is detected and corrected during motion, so the axis stays synchronized with the controller even when load varies. For the machine builder this means tighter positioning repeatability than an open-loop stepper of the same frame.

Holding Brake as Standard

The brake holds the shaft with power off, preventing axis drift on vertical movements and during idle phases. On textile and printing machines this keeps the material web tensioned between indexing moves.

Key Specifications

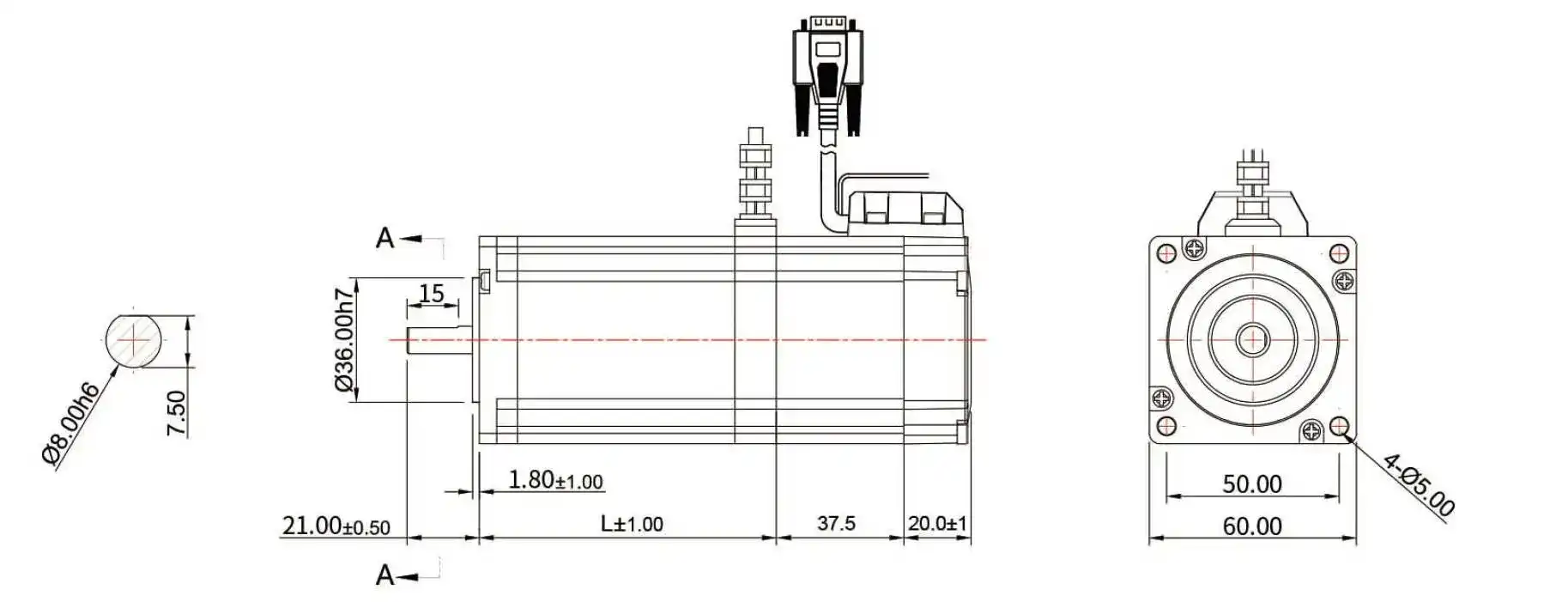

• Phase type: 2-phase bipolar
• Frame size: NEMA24 (60 mm)
• Body length: 100 mm
• Holding torque: 3.5 N·m
• Phase current: 5.0 A
• Shaft size: 8 mm
• Integrated encoder: 1,000 P/R
• Brake: integrated holding brake

Where It Is Used

Typical applications are CNC machine tools, packaging machinery, factory automation, precision robotic mechanisms, textile machinery, printing machinery, food processing, and automated handling mechanisms. The 8 mm shaft suits small timing-belt drives and lead-screw coupling with standard shaft collars.

Operating Guidance

Because the frame is NEMA24, the motor dissipates heat through the flange. Mount it on a metal panel and allow clearance for airflow. In duty cycles above 60% at full torque, reduce the phase current or add forced cooling per the derating curve in the specification. As your distributor, Lyenwsin can recommend a matching drive and confirm the brake supply requirements for your control voltage.
