5Nm 220V Servo Motor with 17-Bit Encoder

Overview

The 110JASM15230K-17BCW is a 220 VAC brushless servo motor rated at 1500 W of continuous power on a 110 mm frame. It produces 5 N·m of rated torque at a rated speed of 3000 r/min and carries an integral holding brake. A 17-bit magnetic encoder closes the position loop, which makes the unit suited to machine axes that must hold precise position while sustaining torque across long duty cycles.

Because it operates on a standard 220 VAC supply, it drops directly into conventional servo cabinet wiring without a separate high-voltage bus. The closed-loop architecture translates into consistent repeatability under varying load, which is the main reason a 110 mm motor of this class is specified on production equipment rather than on machinery that can tolerate open-loop drift.

Key Specifications

• Rated voltage: 220 VAC
• Rated power: 1500 W
• Frame size: 110 mm
• Rated torque: 5 N·m
• Rated speed: 3000 r/min
• Encoder: 17-bit magnetic
• Brake: integrated holding type

Torque and Thermal Behavior

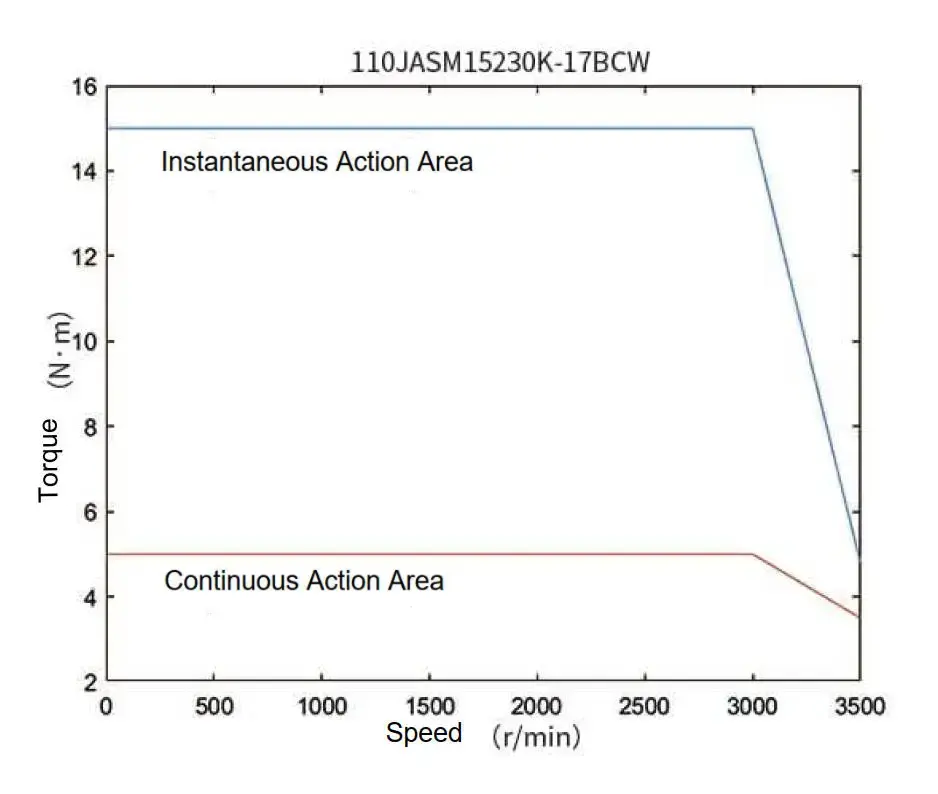

The motor holds its rated 5 N·m of torque across the working speed range, which is realistic only when the machine provides adequate airflow over the 110 mm body. Under short-duration load spikes the servo drive can call for torque above the continuous rating; the duration of that overload is limited by winding thermal rise, so duty-cycle planning matters more on this unit than on lightly loaded drives. When power is removed or the servo loop is disabled, the holding brake engages to prevent a vertical or tilted axis from drifting under its own weight.

Position Feedback and Control Modes

The 17-bit magnetic encoder resolves rotor position to a high resolution, feeding back enough information for position, speed, and torque control in a full closed loop. Because the encoder is magnetic rather than optical, it is comparatively tolerant of contamination from cutting fluids and airborne dust common in machining and packaging floors. The motor is intended to run with a dedicated matching servo drive that executes the current, velocity, and position loops and accepts the brake command.

Applications

This servo motor is regularly specified on CNC machine tools, where axis rigidity and repeatability are the deciding factors, and on packaging, printing, and textile machinery that run continuous high-speed motion. It also appears in factory automation lines, robotics, food processing, material handling, and battery manufacturing equipment, as well as in AGV/AMR platforms where the integrated brake adds safety on slopes and stops.
