750W 220V Servo Motor, 80mm Frame

A Balanced Mid-Power Servo in an 80 mm Frame

The 80JASM507230K-17BCZ-P is a 750W 220V Servo Motor rated at 2.39 N·m of continuous torque at 3000 r/min from 220 VAC. It ships with an integrated holding brake and a 17-bit magnetic encoder. This is a balanced, mid-power servo that handles a wide spread of production duty without the extra mass of a larger frame.

Performance Profile

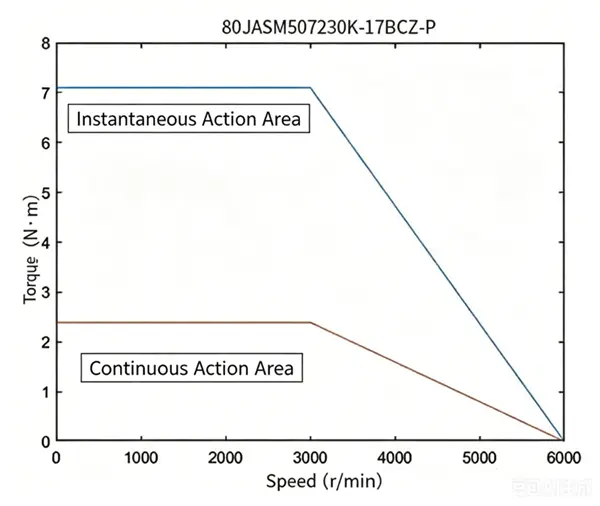

At 750 W the motor occupies the sweet spot between the compact 60 mm units and the larger 110 mm frames, giving noticeably more continuous torque than a 60 mm part while staying easier to package in a machine than a 110 mm one. The 2.39 N·m continuous torque is available up to the rated 3000 r/min, and the combination of low inertia and closed loop encoding yields fast, well-damped axis moves typical of mid-power production servos.

Feedback and Brake

The 17-bit magnetic encoder provides the high-resolution feedback needed for tight position loops, and its magnetic construction resists the dust and cutting fluid found in workshop settings. The holding brake engages on de-energization so the load stays put on vertical strokes and during interruptions, which simplifies safety on machines equipped with this motor.

Key Specifications

• Rated voltage: 220 VAC
• Rated power: 750 W

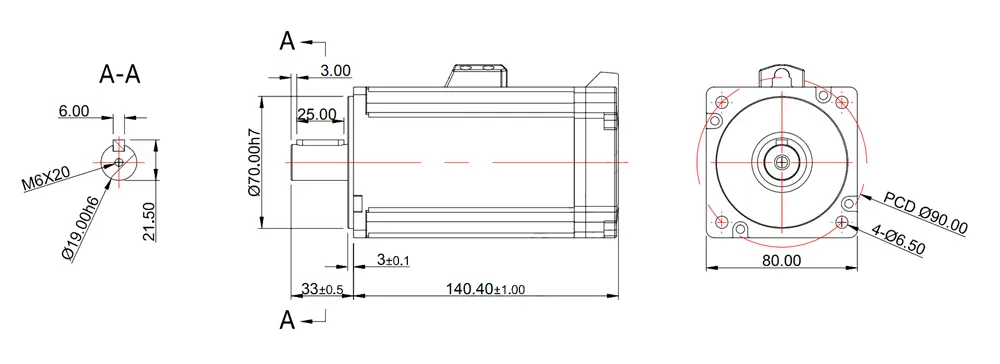

• Frame size: 80 mm
• Rated torque: 2.39 N·m
• Rated speed: 3000 r/min
• Encoder: 17-bit magnetic
• Brake: integrated holding type
• Characteristics: high rotational speed, high performance, low noise

Applications

The motor is a practical fit for packaging machinery, robotics and factory automation cells, and it works well in textile, printing and food processing lines that run sustained high-speed motion. It is also used on material handling systems, battery manufacturing equipment and AGV/AMR platforms, while remaining fully applicable to CNC machine tool axes where consistent repeatability is required.

Selection Considerations

Confirm the duty cycle and thermal margin for continuous high-speed operation, and verify the drive’s output matches the motor’s current draw at 3000 r/min. Lyenwsin offers the 750W 220V servo motor with matched drives, cables and technical support.
