• Rated voltage 220 VAC, rated power 1500 W
• Frame 110 mm, rated torque 6 N·m
• Rated speed 2500 r/min
• 17-bit magnetic encoder
• With brake
• High rotational speed, high performance, low noise
The 110JASM15225K-17BCW is a 6 N·m 220V Servo Motor rated at 1500 W, reaching 2500 r/min on a compact 110 mm flange. Its 17-bit magnetic encoder keeps feedback precise, and the integrated brake holds the shaft when the motor is de-energized.
At 2500 r/min, the 17-bit encoder maintains an accurate position and velocity signal, letting the drive correct measured error continuously across the control loops. This is what makes the motor dependable on cycles that demand both speed and repeatable stopping, the practical advantage over an open-loop drive on the same frame. The 17-bit encoder also keeps the velocity loop quiet at the low end of the speed range, which helps on axes that alternate between fast traverse and slow positioning.

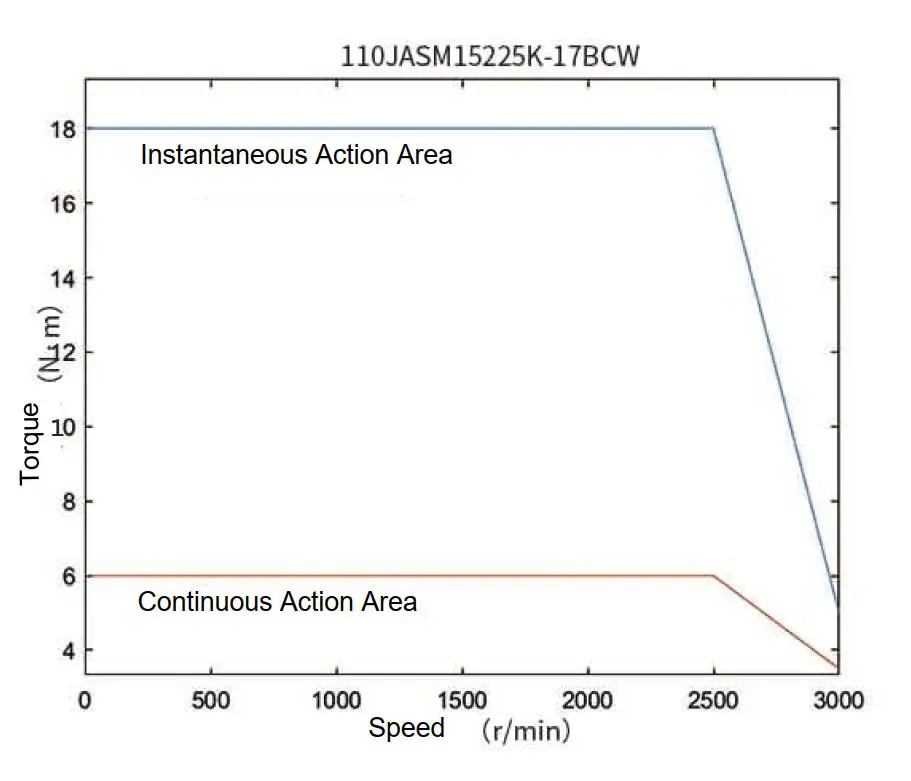

The 6 N·m figure is continuous torque; the family’s short-time 300% overload margin covers transient acceleration within the thermal duty cycle.
The holding brake keeps vertical axes and stop-and-go stations from drifting at standstill. By using a smaller 110 mm flange instead of a larger frame, machine builders free up axis space while still getting 1500 W of output on 220 V.
This servo is used in robotics and factory automation rapid motion, CNC feed and traverse axes, battery manufacturing and material handling, packaging and food processing machinery, textile, printing, and AGV/AMR systems.
For 220 V machines that want high-speed servo motion without a larger footprint, confirm the drive current at 2500 r/min and the cooling available on the 110 mm body. Lyenwsin supplies the 6 N·m 220V servo motor with matched drives and engineering support.

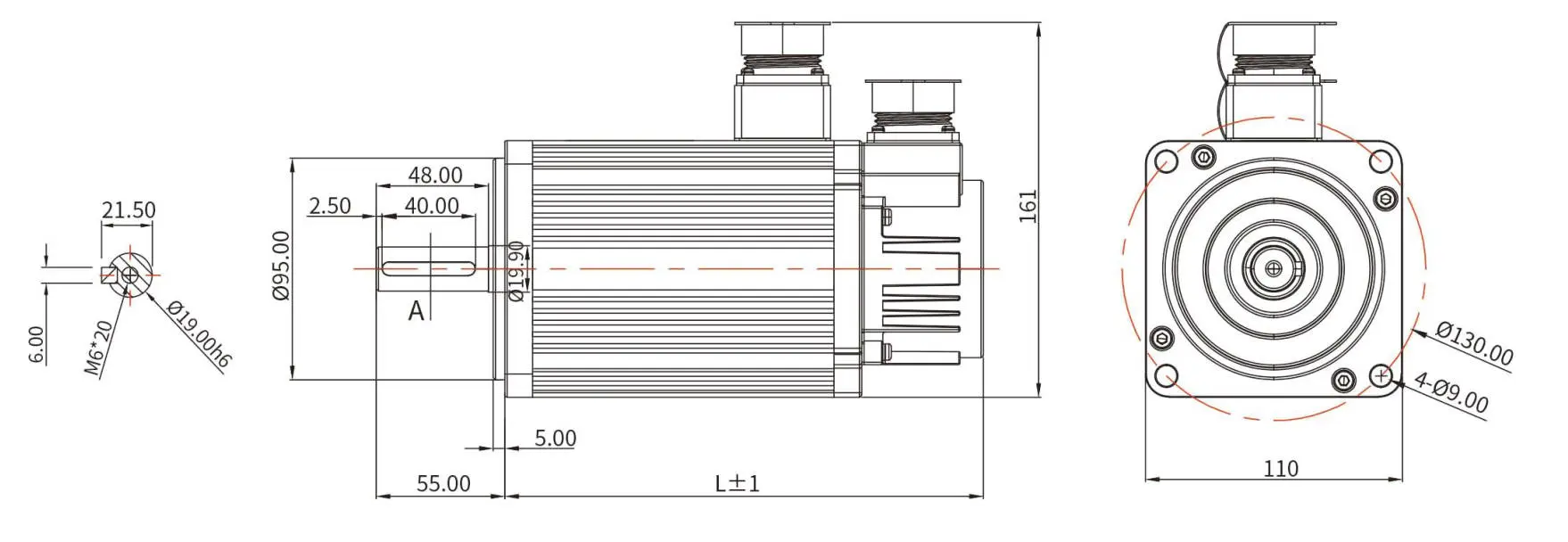

| Model | 110JASM15225K-17BCW |
| Frame Size（mm） | 110 |
| Length L（mm） | 220 |
| Brake Length L（mm） | 294 |
| Supply Voltage(V) | 220 |
| Rated power(W) | 1500 |
| Rated Current（A） | 6 |
| Rated torque(N·m) | 6 |
| Peak torque(N·m) | 18 |
| Rotor inertia（g·cm²） | 10.8 |
| Rated Speed(r/min) | 2500 |
| Peak speed(r/min) | 3000 |
| Weight（kg） | 6.7 |
| Encoder Resolution | 17bit |
