3000W 220V Servo Motor 130JASM530220K-17BCWH with 14.5 N·m Torque and Brake

A 220 V Servo with Real Output

The 130JASM530220K-17BCWH is a 3000W 220V Servo Motor producing 14.5 N·m of rated torque at 2000 r/min on a 130 mm flange. Its 17-bit magnetic encoder gives the matching drive precise rotor-angle data for closed loop control, and the integral brake fixes the shaft when the coil is de-energized.

closed loop Feedback at 220 V

Operating at 220 VAC, this servo still relies on encoder feedback to maintain tight position, speed and torque control. The 17-bit magnetic encoder reports the measured angle continuously, so the drive corrects real deviation instead of trusting commanded motion. That makes the motor consistent on cycles where repeatable stops are required. The 220 V input also lets the motor pair with standard servo drives in the same voltage class, keeping the cabinet architecture consistent across multiple axes.

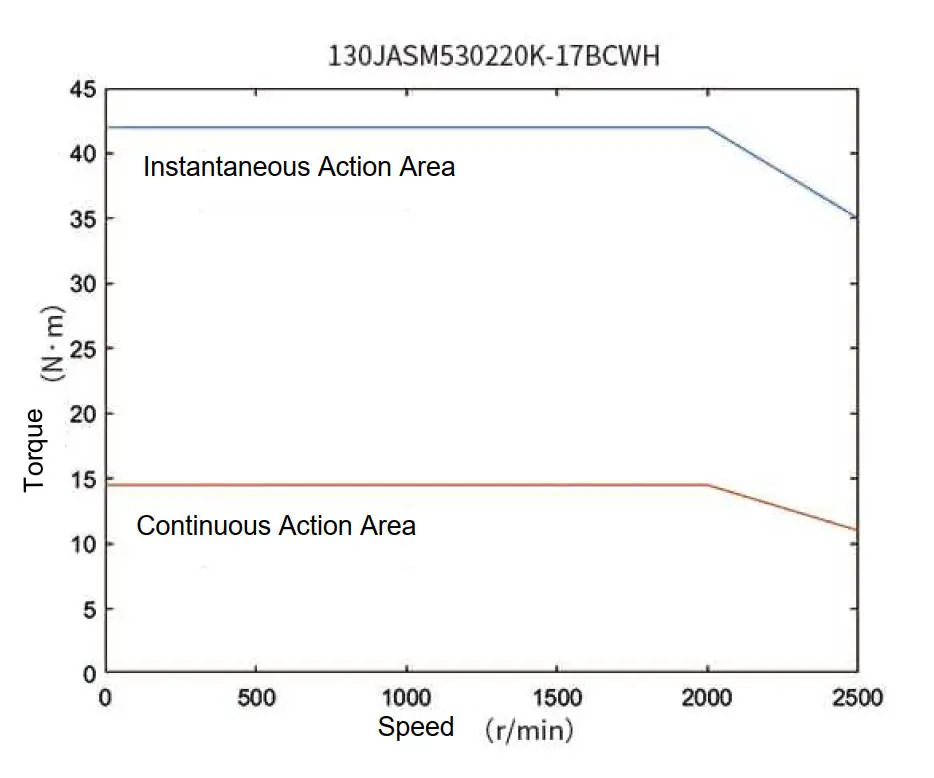

The 14.5 N·m rating is continuous torque; a short-time 300% overload margin covers transient acceleration, bounded by the thermal recovery of the duty cycle.

Brake and Installation

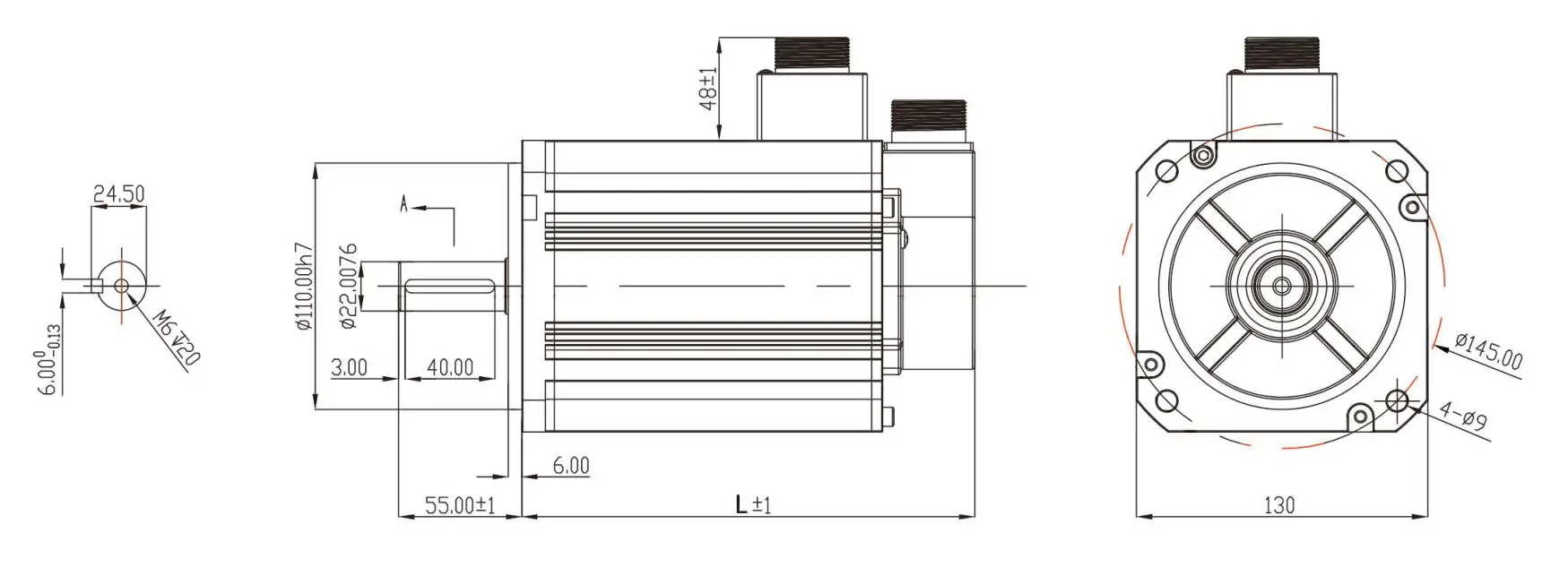

The holding brake secures the load at standstill, which is particularly useful on vertical feeds and turntables. The 130 mm flange provides a standard industrial mount, and the 220 V supply integrates with machinery wired for single or three-phase 220 V installations.

Key Specifications

• Rated voltage: 220 VAC
• Rated power: 3000 W
• Frame size: 130 mm
• Rated torque: 14.5 N·m
• Rated speed: 2000 r/min
• Encoder: 17-bit magnetic
• Holding brake: included
• Characteristics: high rotational speed, high performance, low noise

Application Areas

Typical applications include CNC feed axes, robotics and factory automation joints, battery manufacturing precision stations, packaging, textile and printing machinery, material handling, and AGV/AMR systems.

Selection Considerations

For 220 V-driven machines that need strong continuous torque with precise feedback and a brake, confirm the drive’s continuous current at the motor rating and allow for cooling on the 130 mm body. Lyenwsin supplies the 3000W 220V servo motor with matched drives and technical support.
