1000W 220V Servo Motor, 80mm Frame

A Compact High-Response Servo

The 80JASM510230K-17BCZ-P is a 1000W 220V Servo Motor 80mm in frame size, producing 3.2 N·m of rated torque at 3000 r/min from 220 VAC. It includes a holding brake and a 17-bit magnetic encoder. The smaller frame diameter keeps the rotor inertia low, which shortens the settling time of the servo loop and improves responsiveness on fast indexing and repositioning moves.

Dynamic Response and Inertia Matching

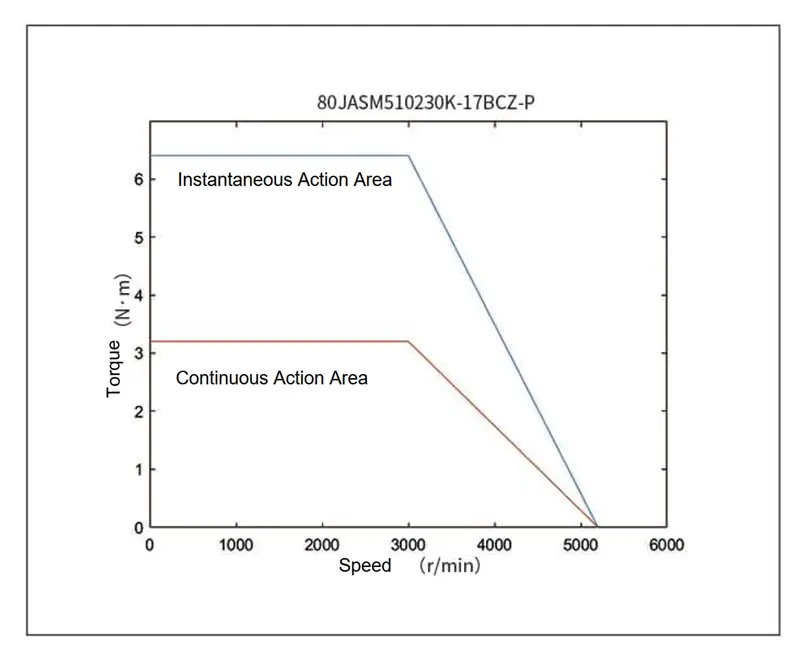

The 80 mm frame gives this motor a comparatively low rotor mass relative to its 1000 W rating, so it accelerates and decelerates with less overshoot. On machinery where a cycle is built from many short moves rather than a few long ones, the reduced settling time adds directly to throughput. Because the 3000 r/min rating sits near the top of the servo band, the motor comfortably reaches production speed while retaining rated torque across the usable range.

Feedback and Brake

A 17-bit magnetic encoder closes all three servo loops and provides high positional resolution for repeatable placement. Magnetic feedback is robust against contamination, which suits the cutting and conveying environments where this motor class is used. The integrated brake locks the shaft when the drive is disabled, protecting the axis on vertical and inclined arrangements during power-down.

Key Specifications

• Rated voltage: 220 VAC
• Rated power: 1000 W

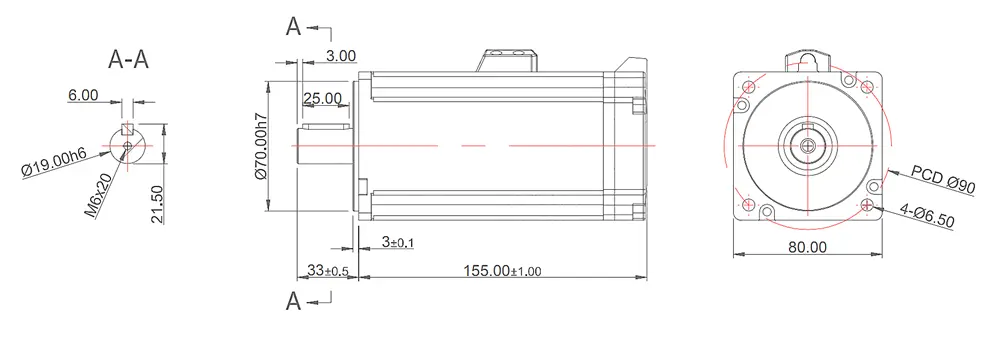

• Frame size: 80 mm
• Rated torque: 3.2 N·m
• Rated speed: 3000 r/min
• Encoder: 17-bit magnetic
• Brake: integrated holding type
• Characteristics: high rotational speed, high performance, low noise

Applications

With moderate inertia and high response, the motor suits robotics, packaging and printing equipment that cycle quickly, and it supports factory automation and CNC machine tools where axis repeatability matters. It is also selected for textile machinery, food processing, material handling and battery manufacturing lines, as well as AGV/AMR platforms.

Selection Considerations

Check that the load inertia ratio stays within the drive’s tuning capability and confirm the airflow around the 80 mm body for continuous 1000 W operation. Lyenwsin supplies the 1000W 220V servo motor with matched drives and commissioning support.
