• Rated voltage 220 VAC, rated power 1500 W
• Frame 130 mm, rated torque 9.55 N·m
• Rated speed 1500 r/min
• 17-bit magnetic encoder
• With brake
• High rotational speed, high performance, low noise
The 130JASM515215K-17BCWH is a 9.55Nm 220V Servo Motor rated at 1500 W, holding 9.55 N·m at 1500 r/min on a 130 mm flange. Its 17-bit magnetic encoder gives the drive precise rotor-angle feedback for closed loop control, and the integral brake locks the shaft when power is removed.
The 17-bit encoder lets the servo driver measure and correct position, speed and torque continuously, so the axis settles accurately instead of drifting. At 1500 r/min the motor holds useful torque, making it a dependable choice for feed motion and indexing where load is fairly steady. The 9.55 N·m figure also leaves a practical margin for friction and small load variations without leaving the continuous thermal rating.
The 9.55 N·m figure is continuous torque; the 300% short-time overload margin covers transient acceleration, bounded by the thermal duty of the application.
The holding brake keeps vertical or gravity-loaded axes stationary at standstill. The standard 130 mm flange simplifies mounting, and the 220 V supply works with typical industrial wiring.
This servo is used in CNC feed axes, robotics and factory automation joints, battery manufacturing and material handling, packaging and food processing machinery, textile, printing, and AGV/AMR systems.
Where a machine needs steady 1500 W servo output with precise feedback and a brake on 220 V, verify the load torque profile and confirm the brake power supply. The 130 mm mounting pattern matches the rest of the series, so an existing axis can usually be upgraded with the same foot and coupling. Lyenwsin supplies the 9.55Nm 220V servo motor with compatible drives and commissioning guidance.
| Model | 130JASM515215K-17BCWH |

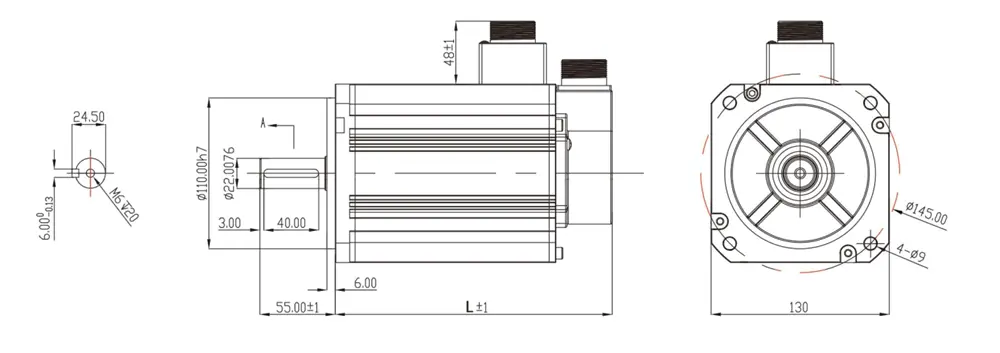

| Frame Size（mm） | 130 |
| Length L（mm） | 170 |
| Brake Length L（mm） | 204 |
| Supply Voltage(V) | 220 |
| Rated power(W) | 1500 |
| Rated Current（A） | 10 |
| Rated torque(N·m) | 9.55 |
| Peak torque(N·m) | 28.65 |
| Rotor inertia（g·cm²） | 12.7 |
| Rated Speed(r/min) | 1500 |
| Peak speed(r/min) | 3000 |
| Weight（kg） | 7.3 |
| Encoder Resolution | 17bit |
