• Rated voltage 220 VAC, rated power 200 W
• Frame 60 mm, rated torque 0.64 N·m
• Rated speed 3000 r/min
• 17-bit magnetic encoder
• With brake
• High rotational speed, high performance, low noise
The 200W 220V Servo Motor is the positioning heart of the 60JASM502230K-17BCZ-P, a 60 mm frame servo motor delivering 200 W of continuous output from a 220 VAC supply. Rated torque is 0.64 N·m at 3000 r/min, with an integrated holding brake and a 17-bit magnetic encoder. Lyenwsin supplies this high-voltage servo motor as part of a complete motion control range for machine builders and system integrators who need closed loop precision on lighter-duty axes.
The 60 mm frame keeps rotor inertia low, which allows small belt drives, leadscrews, and gear stages to reach and hold target speed quickly. On indexing and feed motions that repeat thousands of times per shift, that responsiveness shortens cycle time and reduces the tuning effort required at commissioning.
Because the motor operates on standard 220 VAC, it integrates with the high-voltage servo infrastructure already common in industrial control panels. No low-voltage converter is needed between the drive and the axis, which simplifies cabinet design and spare-parts management.
The 17-bit magnetic encoder gives the servo drive fine resolution for repeatable positioning. Magnetic sensing is inherently more tolerant of dust, oil mist, and moisture than optical encoders, making it a dependable choice on production floors where contaminants are present.
The integrated holding brake locks the shaft whenever the drive is disabled. Vertical and inclined axes therefore hold a safe stationary state during power loss or emergency stops, and the brake also supports controlled stops on AGV and AMR drives.
This 200W servo fits packaging, textile, printing, and food processing equipment where many small axes move comparatively light payloads. It is also used in industrial automation, robotics, material handling, and battery manufacturing lines. With the brake, it suits vertical pick-and-place stations, tilting units, and any axis that must hold position with the power removed.
When sizing a 200 W servo, verify that the continuous torque at the target speed covers the load plus friction, and check the inertia ratio between the motor rotor and the reflected load. If the axis is vertical or inclined, confirm that the holding brake capacity matches the stationary torque. Lyenwsin’s application engineers can help confirm frame size, encoder resolution, and brake selection before you commit to a design.
| Model | 60JASM502230K-17BCZ-P |

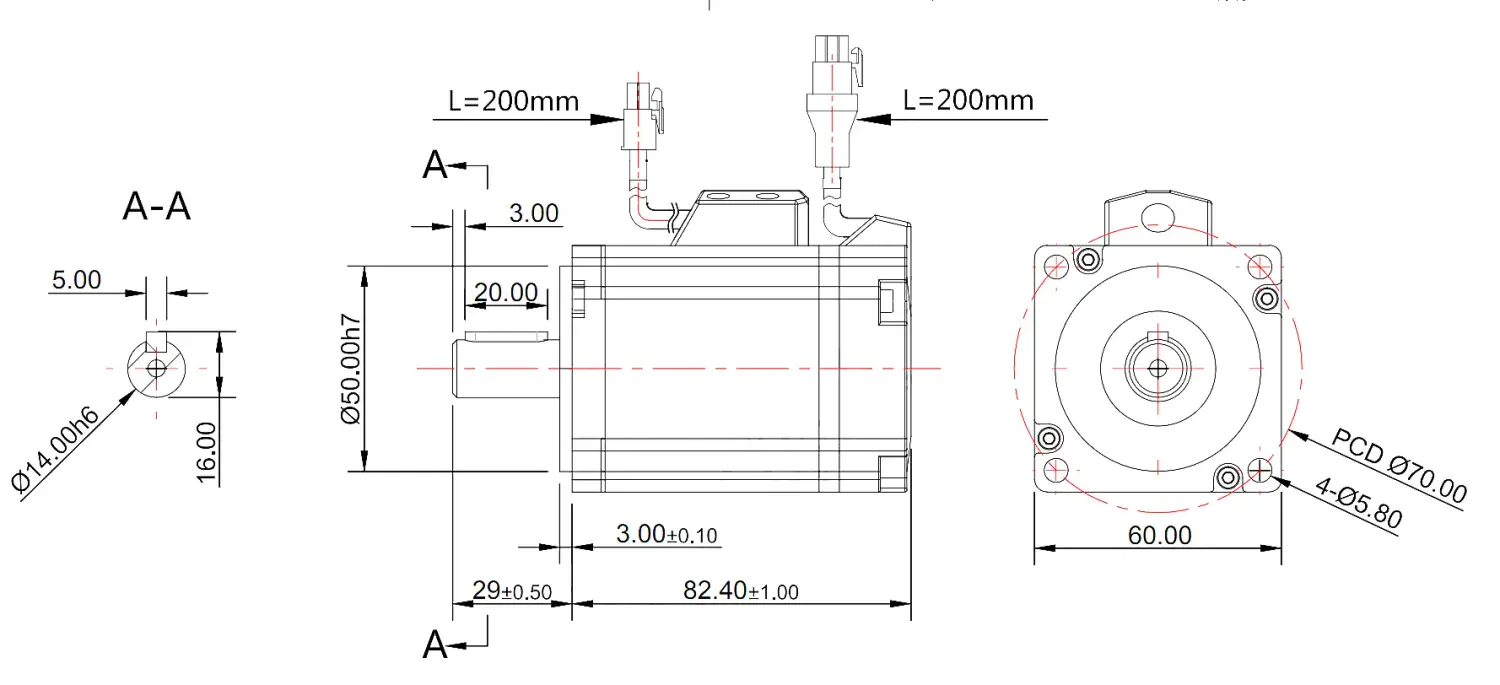

| Frame Size（mm） | 60 |
| Length L（mm） | 81 |
| Brake Length L（mm） | 116 |
| Supply Voltage(V) | 220 |
| Rated power(W) | 200 |
| Rated Current（A） | 1.1 |

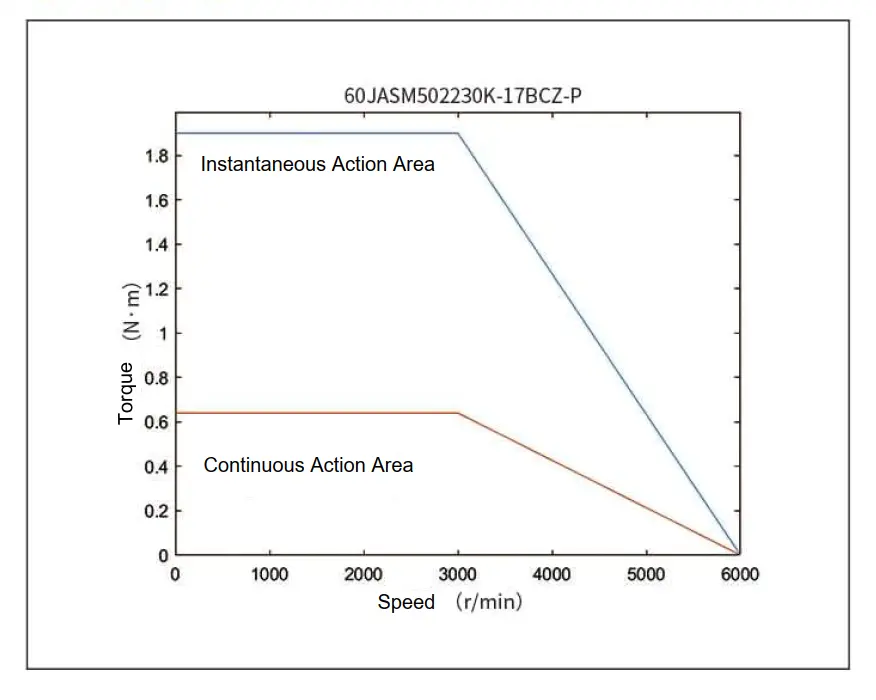

| Rated torque(N·m) | 0.64 |
| Peak torque(N·m) | 1.9 |
| Rotor inertia（g·cm²） | 0.3 |
| Rated Speed(r/min) | 3000 |
| Peak speed(r/min) | 6000 |
| Weight（kg） | 1 |
| Encoder Resolution | 17bit |
