2300W 220V Servo Motor 130JASM523215K-17BCWH with 15 N·m Torque and Brake

A 220 V Servo with Strong, Steady Torque

The 130JASM523215K-17BCWH is a 2300W 220V Servo Motor delivering 15 N·m of rated torque at 1500 r/min on a 130 mm flange. Its 17-bit magnetic encoder provides continuous rotor-angle feedback, and the integrated brake holds the shaft when power is removed.

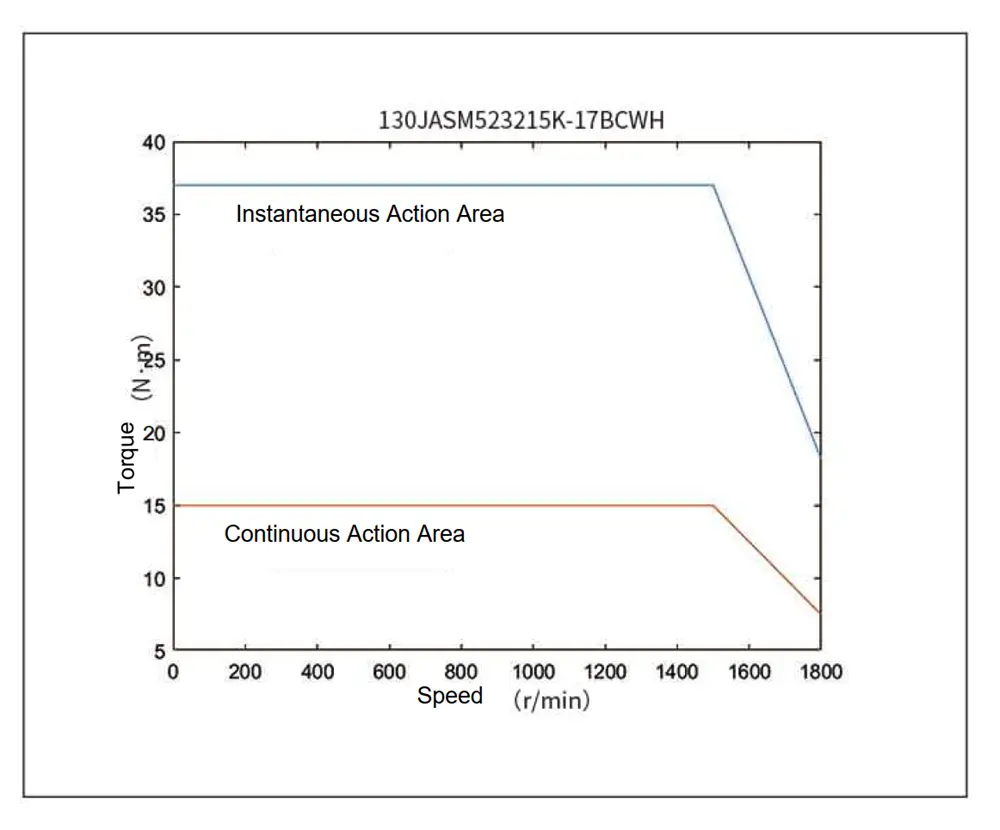

Feedback and Torque Character

Continuous position feedback is what keeps this servo accurate: the 17-bit encoder lets the driver measure and correct error in position, speed and torque on every sample, so the axis settles reliably on repeated indexing. At 1500 r/min the torque stays strong, which suits feed and positioning axes where sustained load resistance is normal. The 130 mm flange is a widely used interface in this power class, so the motor can be specified without unusual mounting or coupling work.

The 300% short-time overload margin gives headroom for transient peaks during acceleration, with thermal duty governing how often those peaks can occur.

Brake and Mechanical Fit

The holding brake prevents drift on vertical or gravity-influenced axes at standstill. A standard 130 mm flange simplifies integration, and the 220 V supply eases wiring in plants standardized on 220 V distribution.

Specifications

• Rated voltage: 220 VAC
• Rated power: 2300 W
• Frame size: 130 mm
• Rated torque: 15 N·m
• Rated speed: 1500 r/min
• Encoder: 17-bit magnetic
• Holding brake: included
• Characteristics: high rotational speed, high performance, low noise

Where It Operates

This servo is specified for CNC machine tool axes, robotics and factory automation motion, battery manufacturing and material handling, packaging, textile and printing machinery, food processing, and AGV/AMR drives.

Selection Notes

When a 220 V machine demands durable continuous torque with precise closed loop feedback and a brake, verify the load inertia and the drive’s tuning range. As a distributor, Lyenwsin can provide the 2300W 220V servo motor with matched drives, cables and application engineering. The motor also pairs with the same 220 V drives used across the series, which simplifies spare-part stocking.
