400W Integrated Servo Motor IHSV60-30-40-48-RC/EC - 48 VDC, 60 mm Frame, EtherCAT Option

A Networked Servo Axis in a Narrow 60 mm Envelope

The 400W Integrated Servo Motor IHSV60-30-40-48-RC/EC fits a 400 W motor and drive into a 60 mm frame supplied from a 48 VDC bus. With RS485, CAN, and EtherCAT options, it is suited to both existing serial lines and synchronized Ethernet networks. For OEMs who want the output of a discrete servo without the panel space, this unit is a direct substitute.

Feedback and Control Architecture

closed loop Regulation With 1000P/R Encoder

A 1000P/R incremental encoder delivers velocity and position feedback for closed loop regulation. In EtherCAT mode the axis can participate in synchronized multi-axis moves; in RS485/CAN mode it operates as one station on a conventional bus. The integrated connector carries power, feedback, and bus in a single cable set.

Short Current Loop, Predictable Wiring

Housing the power stage beside the motor keeps the drive-to-motor current path very short and removes separate drive wiring from the installation, reducing both labor and the chance of wiring errors during commissioning.

Specifications

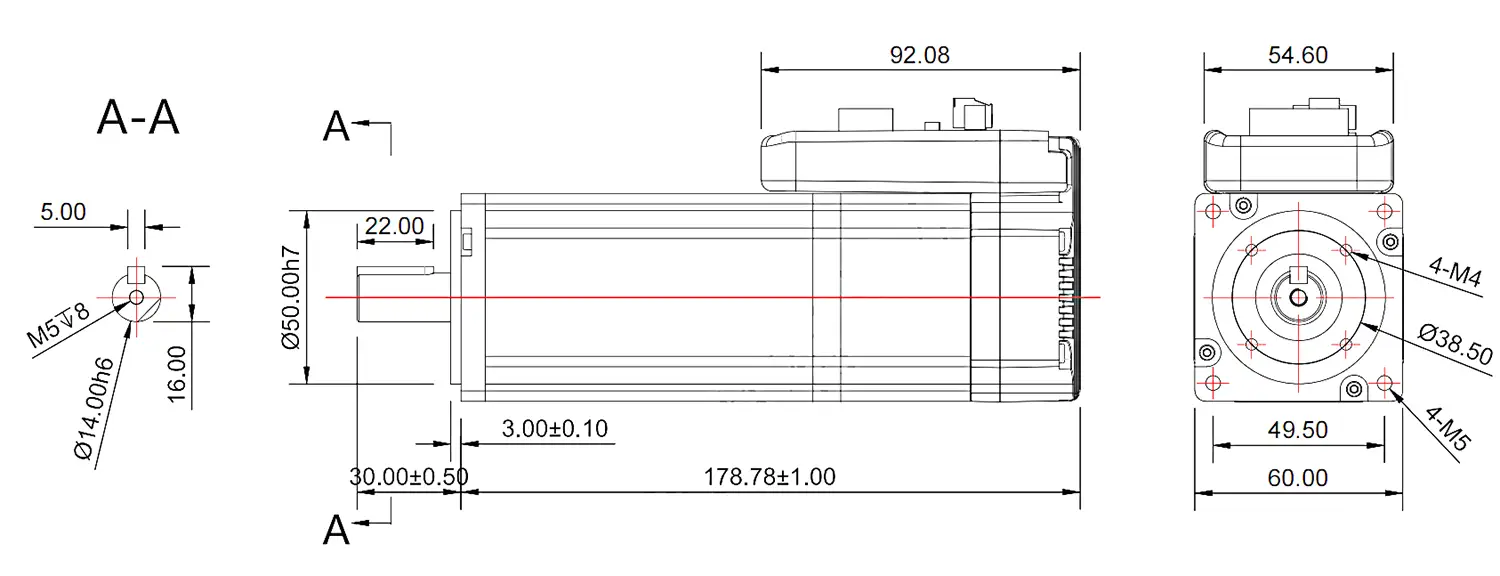

• Frame size: 60 mm
• Rated power: 400 W
• Supply voltage: 48 VDC
• Rated current: 11.2 A
• Feedback: 1000P/R incremental encoder
• Fieldbus: RS485 + CAN / EtherCAT

Thermal and Fault Management

Overcurrent, overvoltage, undervoltage, and position-deviation monitoring are built in, with fault notification on the bus. Holding average current near 11.2 A during continuous duty preserves thermal margin on the 60 mm frame.

Application Fit

Good matches are packaging machinery, textile and printing equipment, food processing lines, material handling, and factory automation stations that need a mid-power networked axis in a narrow envelope. The 60 mm width lets it fit into retrofit spaces where larger frames cannot.

Distributor Sourcing

Lyenwsin offers this 400W Integrated Servo Motor with application engineering support, covering EtherCAT synchronization, current duty, and mounting layout so the retrofit or new build performs to specification.
