• Rated voltage 48 VDC, rated power 3000 W
• Frame 130 mm, rated torque 9.5 N.m
• Rated speed 3000 r/min
• 17-bit magnetic encoder
• With brake
• Safe and reliable, high precision, dynamic response, low noise
The 130ASM3000-5-17BCQ-DB15 is a Low-Voltage Servo Motor 48V with 3,000 W rated power and a 9.5 N·m continuous torque rating at 3,000 r/min. Built in a 130 mm frame with a 17-bit magnetic encoder and an integrated brake, it delivers high-output motion on a low-voltage DC bus for machines that cannot run a conventional high-voltage cabinet.
At 9.5 N·m rated torque the motor sustains useful load without oversizing the frame, while the 3,000 r/min rated speed covers typical indexing and traverse duty. Because the system runs from 48 VDC, it simplifies safety isolation, reduces insulation stress and suits mobile and battery-backed equipment where AC distribution is not available.
The 17-bit magnetic encoder gives fine position granularity, which keeps positioning precise in closed loop servo systems. Because it is magnetic, it tolerates the vibration and contamination common in rugged machine environments. The integrated brake holds the shaft when power is removed, so vertical axes and gravity-loaded tooling do not drift during stops or emergencies.
Paired with a dedicated low-voltage servo driver, the motor supports position, speed and torque control with fast dynamic response and low noise. This makes it a practical choice for smooth, high-precision motion in production lines where cycle time and repeatability are both important.
The motor fits CNC machine tools, packaging machinery, factory automation, robotics, textile machinery, printing machinery, food processing, material handling, battery manufacturing and AGV/AMR platforms. The 48V system and holding brake support mobile and safety-sensitive installations, and the 3,000 W output covers heavier indexing and traverse axes in these environments.
Confirm that the 48 VDC bus can supply the peak current during acceleration, and match the servo driver to the motor’s continuous and peak ratings. As a supplier of complete servo packages, Lyenwsin can recommend the matching driver, brake wiring and cable set for your axis.
| Model | 130ASM3000-5-17BCQ-DB15 |

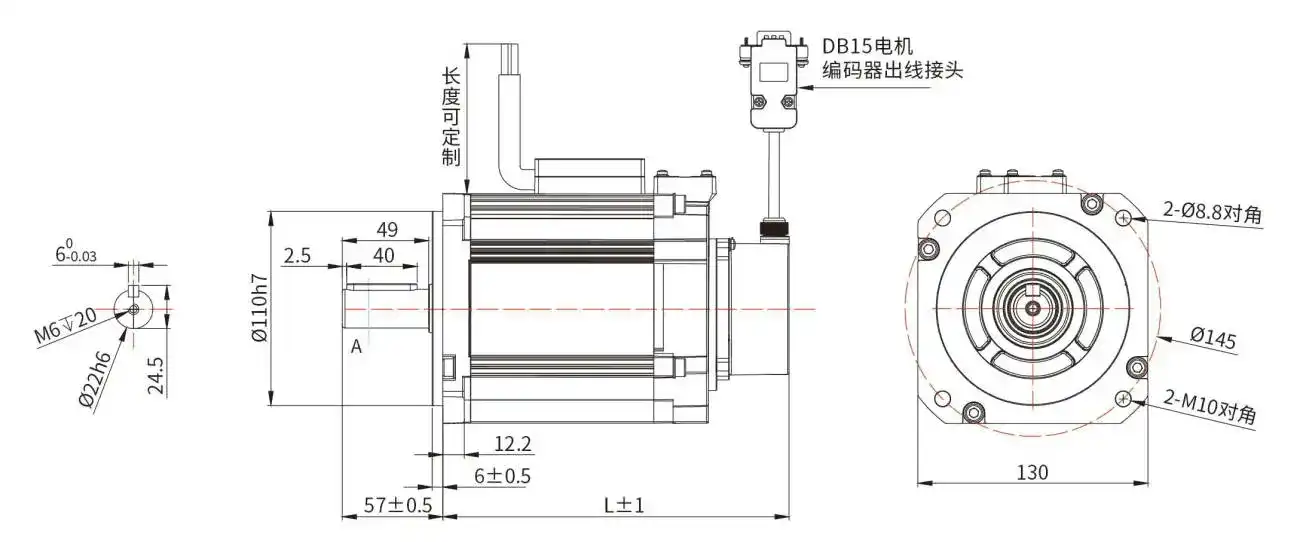

| Frame Size(mm) | 130 |
| Length L(mm) | 201 |
| Brake Length L(mm) | 201 |
| Supply Voltage(V) | 48 |
| Rated power(W) | 3000 |
| Rated Current(A) | 82 |
| Rated torque(N·m) | 9.5 |
| Peak torque(N·m) | 28.5 |
| Rotor inertia(g·cm²) | 21.5 |
| Rated Speed(r/min) | 3000 |
| Peak speed(r/min) | 3500 |
| Weight(kg) | 8.6 |
| Encoder Resolution | 17bit |
