400W Low-Voltage Servo Motor – 60 mm Frame with 1.27 N·m and Brake

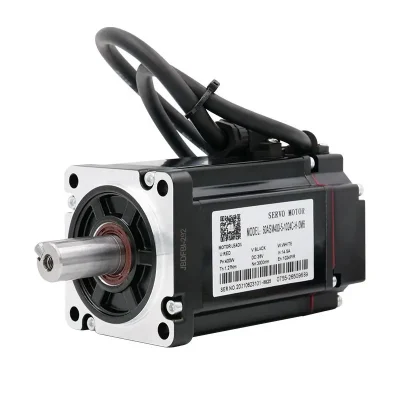

The 60ASM400-5-17BCH-DB15 is a 400W Low-Voltage Servo Motor in a compact 60 mm frame, running from a 48 VDC supply. It delivers 1.27 N·m at 3,000 r/min with a 17-bit magnetic encoder and an integrated brake, making it suited to small packaging and robot axes where space is constrained and position repeatability matters.

Compact 400 W axis for low-voltage machines

At 400 W the motor covers labeling, pick-and-place and short-stroke indexing without the thermal or mechanical overhead of a larger frame. The 48 VDC construction suits battery-backed machines, safety-lowered systems and equipment where a high-voltage cabinet is impractical.

High-resolution closed loop control

The 17-bit magnetic encoder gives absolute position feedback for reliable closed loop commutation. This keeps low-speed motion smooth, which matters on labeling and pick-and-place applications that move slowly but must position precisely.

Brake for vertical and dwell duties

An integrated brake holds the rotor on de-energize, an option of value on vertical-transfer axes and on stations that stop for inspection. Its small diameter suits extrusion and assembly machines with dense axis spacing.

Application scenarios

Packaging machinery, robotics, factory automation, textile and printing, food processing, material handling and AGV/AMR platforms all use this motor class for axes that need compact, repeatable motion. In packaging it drives labelers and registration rollers; in robotics it moves small wrist and gripper joints; on AGV/AMR platforms it handles steering and light lift axes directly from the battery-fed DC bus.

Specification list

• Rated voltage: 48 VDC
• Rated power: 400 W
• Frame: 60 mm
• Rated torque: 1.27 N·m
• Rated speed: 3000 r/min
• Feedback: 17-bit encoder
• Brake: yes

Selection guidance

Confirm the 48 VDC bus can supply the peak current during acceleration, and match the brake release signal to the drive output. If the axis needs more than 1.27 N·m continuous, select the next frame size in the series rather than overloading this motor. Lyenwsin technical support can help verify driver pairing and cable requirements for your machine.
