200W 36V Servo Motor – 0.64 N·m with 17-bit Encoder and Brake

The 60ASM200-5-17BCH is a 200W 36V Servo Motor working from a 36 VDC bus in a 60 mm frame. Its 0.64 N·m continuous torque at 3,000 r/min, 17-bit magnetic encoder and integrated brake suit guides, small conveyors and short-stroke indexing where installed space is limited and the load is modest.

200 W output for light, precise motion

The motor covers light indexing and transfer duties with smooth low-speed behaviour and absolute position feedback. Because it runs from 36 VDC, it fits battery-fed machines, low-voltage control cabinets and food-handling areas where reduced shock risk is welcome during washdown.

Feedback behavior

The 17-bit magnetic encoder returns absolute position, enabling closed loop speed and position regulation. Resolution is high enough for smooth low-speed travel, reducing hunting on position-sensitive transfer tasks.

Brake and running temperature

The integrated brake holds the rotor while idle. Since the motor is small, thermal rise is modest at continuous torque, and the low-voltage construction simplifies wiring and reduces insulation requirements versus high-voltage servo motors.

Application scenarios

Put this motor on packaging machines to run registration rollers and label applicators that must hold exact dwell at each index. In robotics it drives small wrist and gripper rotation joints where a heavier servo would add inertia and cost. Factory automation line builders use it on alignment fixtures and cell-position correction tables. On textile and printing machines it runs guider rolls and pick rolls that need constant tension rather than high force. Food handling uses the clean 36 VDC construction near preparation areas where low-voltage wiring reduces shock risk during washdown, and material handling systems employ it on the vertical and horizontal axis of light lift modules.

Specification list

• Rated voltage: 36 VDC
• Rated power: 200 W

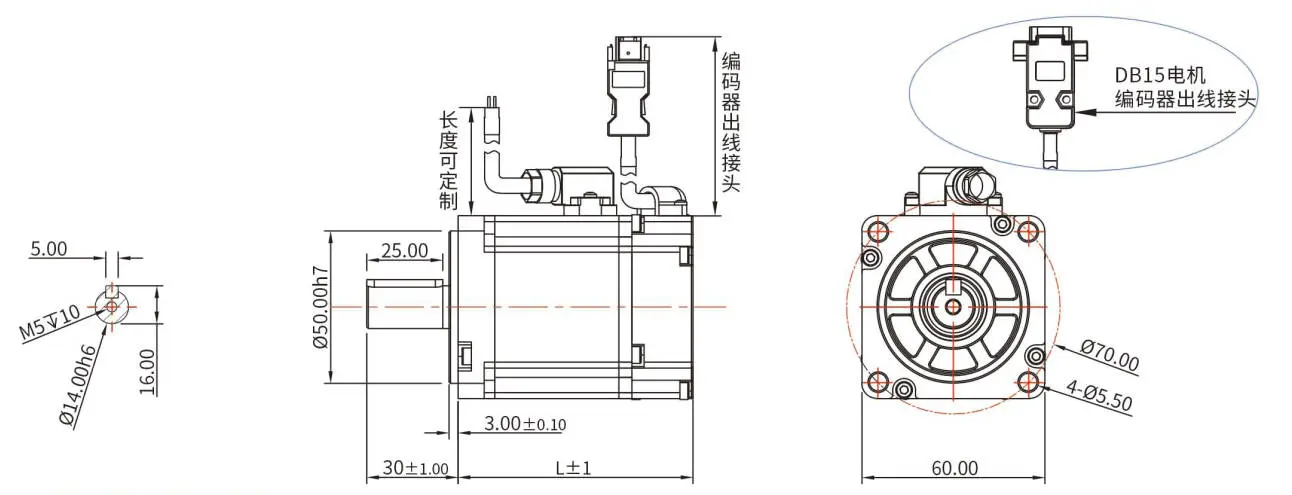

• Frame: 60 mm

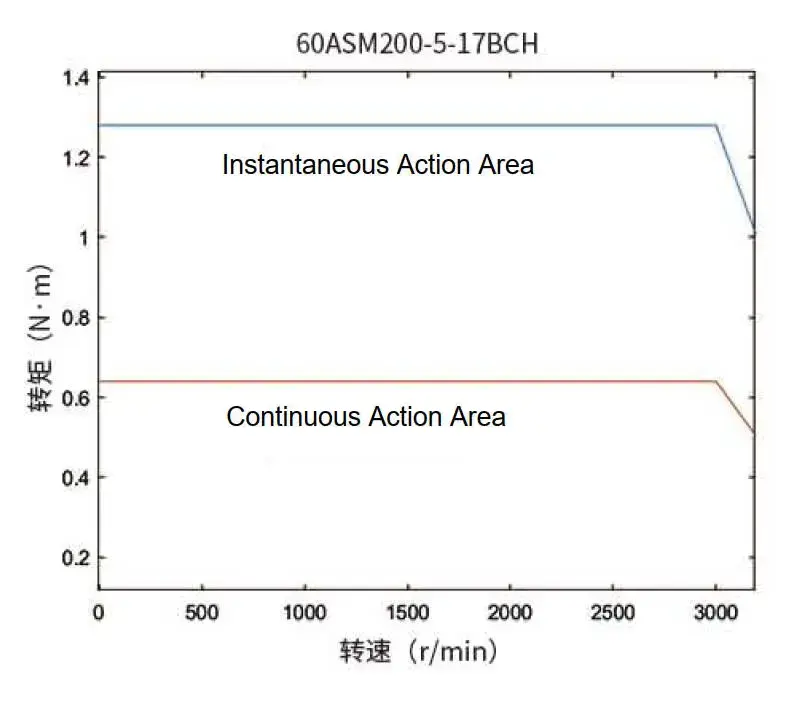

• Rated torque: 0.64 N·m
• Rated speed: 3000 r/min
• Encoder: 17-bit magnetic
• Brake: yes

Selection and operating notes

Choose this motor when your machine already runs on a low-voltage DC supply and the axis calls for modest torque with repeatable positioning. Match the driver rated current to the motor so the 17-bit feedback is used to its full resolution. The integral brake makes it a good fit for horizontal palletizing pushers and turnover fixtures where holding on stop is part of the cycle. Verify the 60 mm mounting envelope clears adjacent components before finalizing the layout, and contact Lyenwsin technical support if you need help selecting a matched 36 VDC driver.
