• Rated voltage 48 VDC, rated power 750 W
• Frame 80 mm, rated torque 2.38 N.m
• Rated speed 3000 r/min
• 17-bit magnetic encoder
• With brake
• Safe and reliable, high precision, dynamic response, low noise

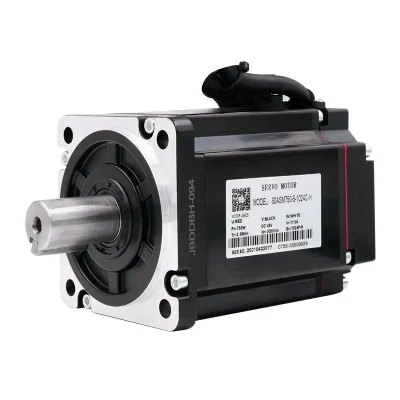

The 80ASM750-5-17BCH-DB15 is a 750 W low-voltage servo motor running on a 48 VDC supply. With a 2.38 N·m continuous rating at 3000 r/min, it handles moderate-inertia axes in packaging, AGV and textile equipment without over-provisioning the drive.
The 17-bit magnetic encoder returns absolute position, letting the closed loop drive maintain tight speed and position control. Because feedback is read on every commutation cycle, torque ripple and speed variation stay low even at low operating speeds.
The integrated brake holds the shaft on loss of power, important on indexing and vertical-travel axes. Continuous duty at rated torque remains inside the thermal design; short peak loads are absorbed by the driver’s overload headroom.
AGV/AMR drive modules and steering actuators use the 80 mm frame and 48 VDC compatibility to keep onboard electronics simple. Packaging lines rely on the 2.38 N·m torque for servo-driven conveyors and rotary indexing stations, while textile machinery uses it for smooth roller drive where speed variation must stay low. Robotics, CNC tooling and battery-manufacturing stations add the motor to compact axes that need absolute positioning, and material-handling equipment gains a reliable, low-noise drive for lift and transfer mechanisms.

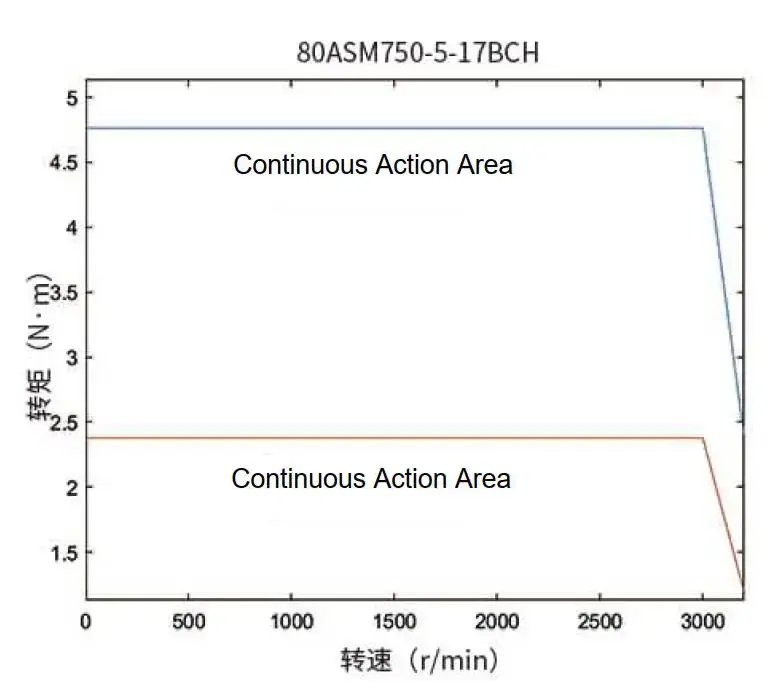

Match the driver current and bus voltage to the 48 VDC rating and confirm the brake release signal is wired correctly before powering vertical axes. At 750 W the motor suits moderate-inertia loads; for heavier duty, step up to the 1000 W 80 mm variant instead of overloading the drive. Ensure the frame is mounted to a heat-conducting surface for continuous 3000 r/min operation, and verify the torque required at your working speed against the torque-speed curve.
| Model | 80ASM750-5-17BCH-DB15 |
| Frame Size（mm） | 80 |
| Length L（mm） | 106 |
| Brake Length L（mm） | 147 |
| Supply Voltage(V) | 48 |
| Rated power(W) | 750 |
| Rated Current（A） | 19.5 |
| Rated torque(N·m) | 2.38 |
| Peak torque(N·m) | 4.76 |
| Rotor inertia（g·cm²） | 1.7 |
| Rated Speed(r/min) | 3000 |
| Peak speed(r/min) | 3200 |
| Weight（kg） | 2.3 |
| Encoder Resolution | 17bit |
