1000W Low-Voltage Servo Motor – 80 mm Frame with 3.2 N·m and Brake

The 80ASM1000-5-17BCH-DB15 is a 1000W Low-Voltage Servo Motor that delivers 1,000 W from a 48 VDC supply while staying in a compact 80 mm frame. With 3.2 N·m rated torque at 3,000 r/min, a 17-bit magnetic encoder and an integrated brake, it fits sections of packaging and robot cells where a larger frame would crowd adjacent components.

A 1000 W axis that fits tight envelopes

Staying in the 80 mm frame lets machine builders place the motor close to the working point without redesigning the mechanical envelope. The 3.2 N·m rating covers typical pick-and-place and turntable duty, and the low rotor inertia supports quick acceleration and short settling time.

closed loop feedback with holding brake

The 17-bit magnetic encoder makes the axis closed loop with absolute position; the integrated brake holds the shaft on de-energize, useful on pick-and-place and rotary turntable stations where dwell positioning must not drift.

Dynamic response and thermal behavior

Low rotor inertia supports fast acceleration and short settling times typical of servo control. Continuous operation at 3,000 r/min stays within the thermal envelope; the brake adds axial length but not duty-cycle penalty when idle holding.

Application scenarios

In robotics and packaging cells the motor runs pick-and-place axes and turntables, where the brake keeps the payload in position during power-off dwell and the 17-bit feedback gives clean position repeatability. AGV/AMR platforms use it for steering and drive modules that must be compact and 48 VDC-compatible, while CNC machine tools and material-handling equipment apply it to auxiliary axes such as tool changers and lift stages. Textile and printing machinery benefit from smooth low-noise rotation on servo-driven rollers, and battery manufacturing lines use the small frame where cell-handling stations are densely packed.

Selection and operating notes

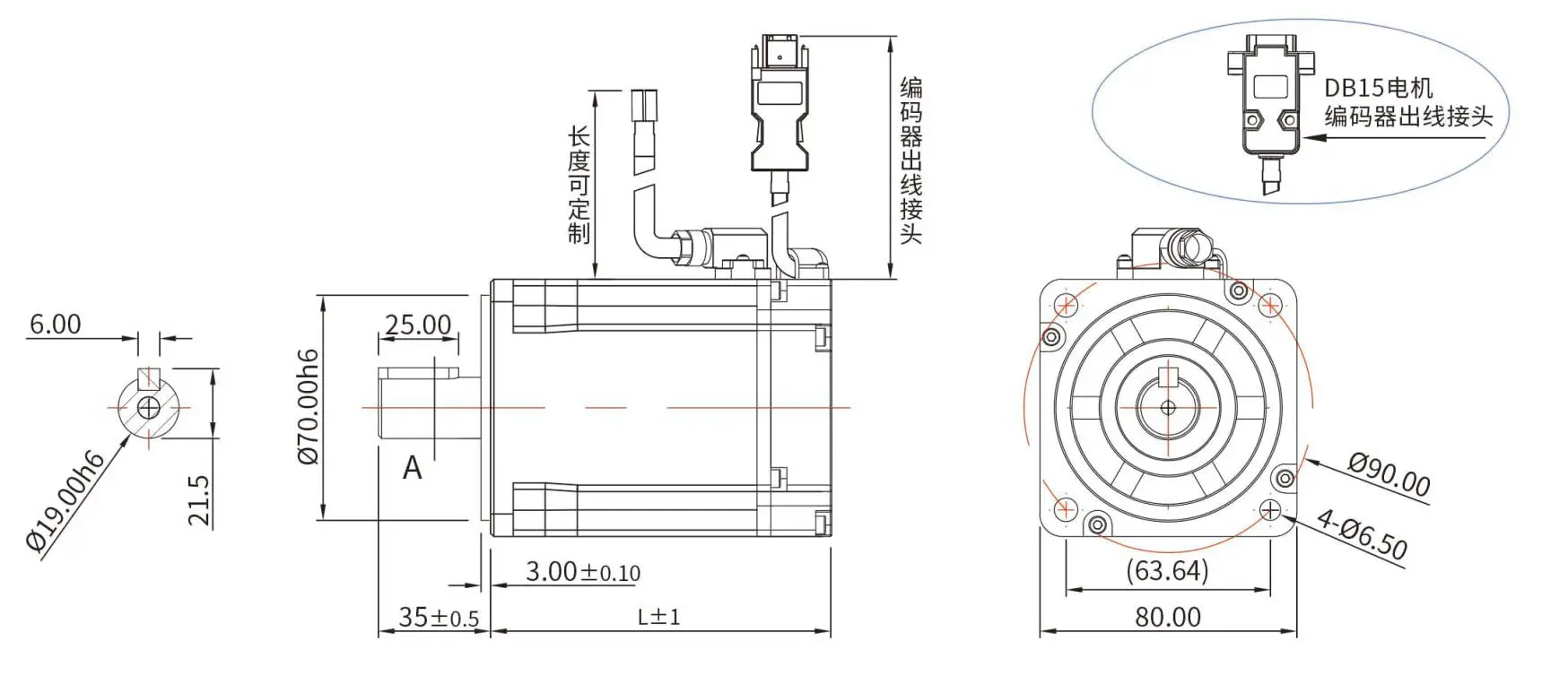

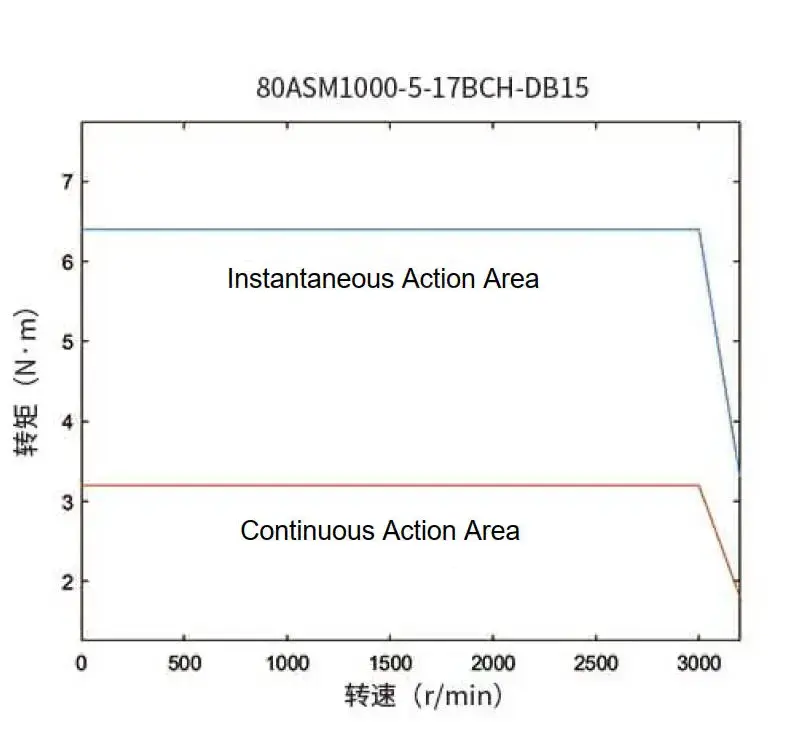

Size the servo driver to the 48 VDC bus and to the peak current drawn during acceleration, and verify the brake wiring matches the drive’s hold-release control. Confirm the 3.2 N·m rating is sufficient at your working speed: for high-speed indexing, check the torque-speed curve rather than the rated torque alone. Keep the 80 mm frame clear of heat sources and confirm enclosure airflow for continuous 3,000 r/min duty.

• Rated voltage: 48 VDC
• Rated power: 1000 W
• Frame: 80 mm
• Rated torque: 3.2 N·m
• Rated speed: 3000 r/min
• Feedback: 17-bit encoder
• Brake: integrated
